We have a wide selection of glass- and wooden doors for combination with our various glass wall systems. Same doors can be used in drywalls, concrete- and brick walls. The doors meet various demands to both design, sound insulation and fire resistance.
TRIPLAN LITE®-frames
The doors for the TRIPLAN LITE® glass wall system are either fitted in a T-shaped frame, TRIPLAN LITE® 01-door frame, or in a specially designed acoustic frame, TRIPLAN LITE® 02-door frame. Both frames are in aluminium and meet demands to both strength and stability in a minimalist design and are easy to assemble on site.
TP frame in a wall opening - TPM
If there is a need for a door frame for direct mounting in a wall opening, e.g. a concrete hole or an opening in a dry wall, you can use the TP Wall opening frame TPM to your advantage. It´s a narrow door frame in aluminium with a minimalist design, which is easy to mount on the site.
TP FIRE-frame
The TP FIRE-steel doorframe that comes pre-welded from factory is a more rigid solution that suits projects with demands to fire resistance and is an ideal solution for buildings with a high degree of wear and tear such as hospitals, schools and institutions.
Below a summary of our doors.

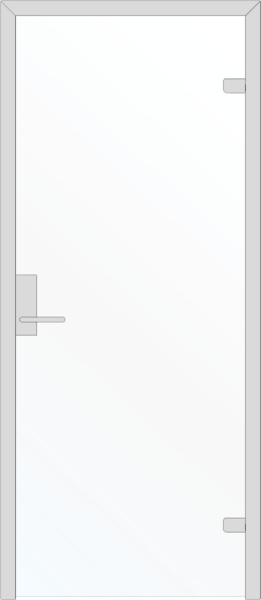

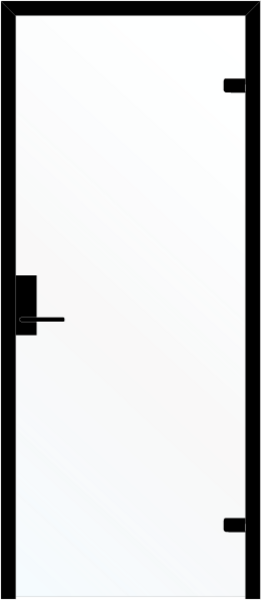

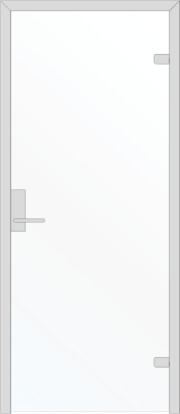

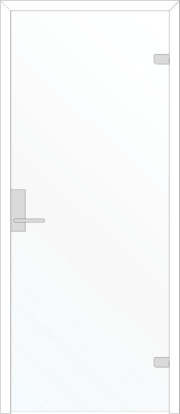

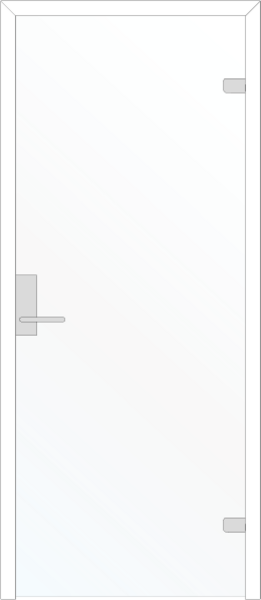

GD 01 | GLASS DOORS
The glass door is one of Triplan’s most minimalistic products. The door is designed to be fitted in the glass wall system TRIPLAN LITE® 34 - 50 dB and it underlines the light architectural expression of the glass wall. If you select the same width for the adjoining glasses, then the door can easily be relocated.
Door leaves
The door leaf consists of a glass pane without a frame, drilled with holes for hinges and lock case.

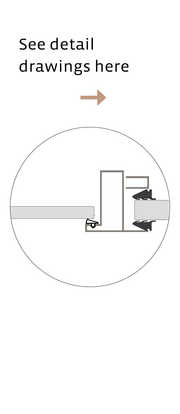

Doorframe
The glass door is fitted in both the TRIPLAN LITE® 01-doorframe and the TRIPLAN LITE® 02-doorframe - 52 mm slim T-shaped doorframes that are easily assembled on site. The doorframes are in aluminium, anodized or powder coated in either white RAL 9010 or black RAL 9005. The doorframes may optionally be supplied in special colours.
Dimensions
The doors are available as optionally single or double doors with or without glass above.
Standard doors are 9M (825mm) but optionally available in 10M and in full height.
Ironmongery
As standard with stainless steel hinges or alu hinges and Triplan TP 565 stainless steel lock case or WSS Atelier alu lock case.
Optionally available with oil hydraulic self closing hinges.
| Door type | Wall type | Door leaf | Frame | Sound reduction of door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| GD 01 | TRIPLAN LITE® 34 - 43 dB | 10 - 12.76 mm glas | TRIPLAN LITE® 01 and 02/TPM | 34 - 40 dB | ||||
| GD 01 | TRIPLAN LITE® 46 - 50 dB | 10 - 12.76 mm glas | TRIPLAN LITE® 02 /TPM | 34 - 40 dB |

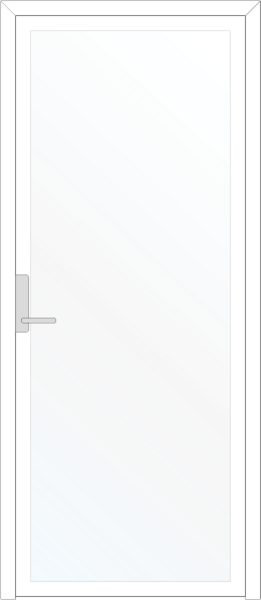

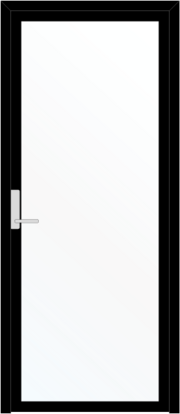

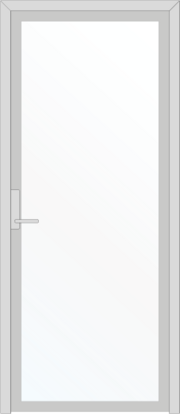

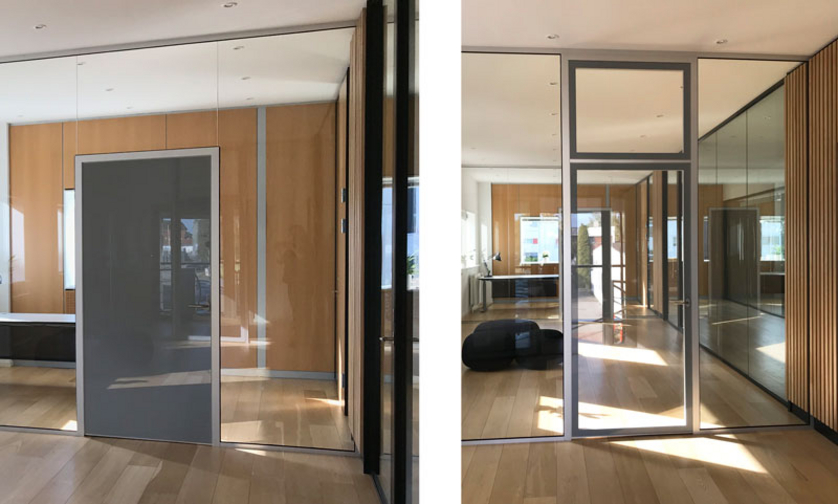

GD 02 | 2-LAYER GLASS DOOR
The 2-layer glass door - a “sandwich door” or “iPhone door”- is an exclusive product with a minimalistic expression. The door is fitted in the glass wall system TRIPLAN LITE® 34 - 43 dB.
Door leaf
The door leaf consists of 2 layers of glass glued on the outside of an alu frame. The inner alu frame is almost fully concealed as the glass has a narrow matt painted border on the inside of the glass.
Door frame
The 2-layered glass door is fitted in the TRIPLAN LITE® 01-frame - a 52 mm slim T-shaped doorframe that is easily assembled on site. The doorframe is in aluminium, anodized or powder coated in either white RAL 9010 or black RAL 9005. The doorframes may optionally be supplied in special colours.
Dimensions
The doors are available as optionally single or double doors with or without glass above.
Standard doors are 9M (825mm) but optionally available in 10M and in full height up to 2300 mm.
Ironmongery
Comes with Abloy 3228 pin hinges and an Abloy lock case. Not foreseen for a cylinder as standard.
Optionally available with a concealed door closer.
| Door type | Wall type | Door leaf | Frame | Sound reduction of door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| GD 02 | TRIPLAN LITE® 34 - 43 dB | 4 + 6 mm glas | TRIPLAN LITE® 01/TPM | 30 - 35 dB |

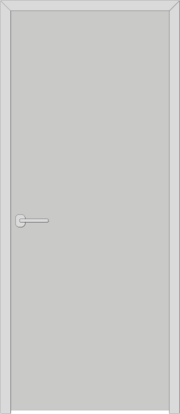

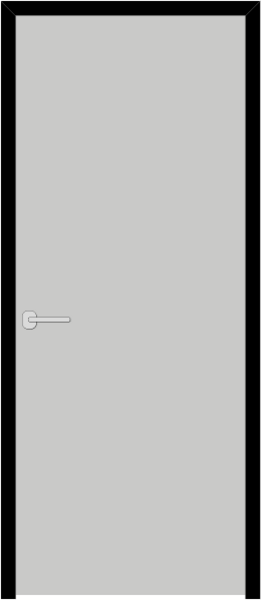

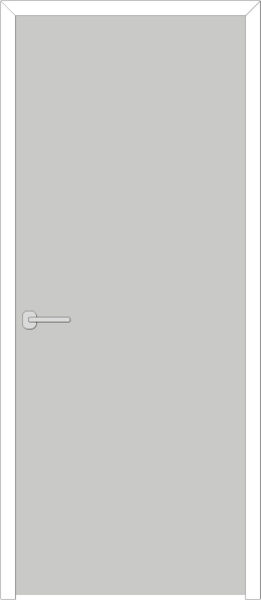

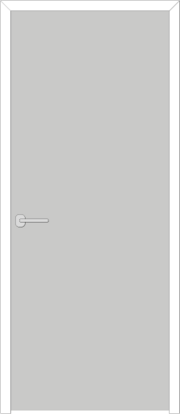

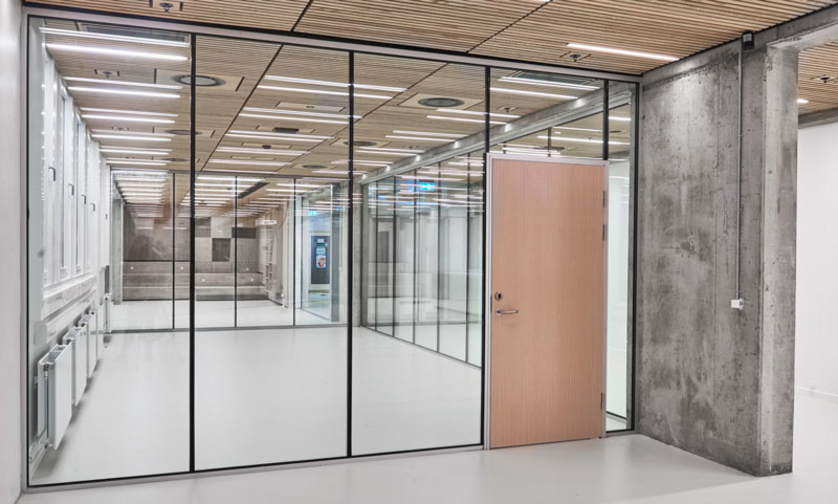

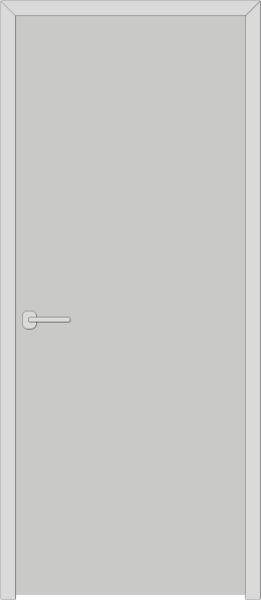

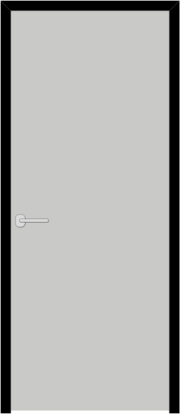

TD 01 | WOODEN DOORS
A solid door is an ideal solution if you want to create a visual contrast to the light glass wall and if higher demands to sound insulation are required. Standard colour is white NCS S-0502Y. Optionally special colours.
The door can be installed in all variants of the glass wall system TRIPLAN LITE®.
Door frame
The wooden door is fitted in the TRIPLAN LITE® 01-frame - a 52 mm slim T-shaped doorframe that is easily assembled on site. The doorframe is in aluminium, anodized or powder coated in either white RAL 9010 or black RAL 9005. The doorframes may optionally be supplied in special colours.
The solid door can optionally be fitted in the TP FIRE-steel frame – a doorframe that is taylor made to each project and delivered pre-welded from factory. A suitable door type for projects with demands to fire resistance or for extra strong doors. The doorframe is of steel and hot galvanized and powder coated in a RAL colour.
Dimensions
Solid doors are available as single or double doors with or without glass above.
Standard doors are 9M (825mm) but optionally available in 10M and in full height..
Ironmongery
Comes with Abloy 3228 pin hinges and an Abloy lock case. Lock case to be agreed upon.
Optionally available with a concealed door closer. Door colour NCS 0502Y or special colour.
| Door type | Wall type | Door leaf | Frame | sound reduction of door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| TD 01 | TRIPLAN LITE® 34 - 43 dB | 40 mm | TRIPLAN LITE® 01 and 02/TPM | 25 - 35 dB | ||||
| TD 01 | TRIPLAN LITE® 46 - 50 dB | 40 mm | TRIPLAN LITE® 02/TPM | 25 - 35 dB | ||||
| TD 01 | TRIPLAN LITE® E - EI 60 | 40 mm | TP FIRE S | 25 - 35 dB | ||||
| TD 01 | TP FIRE unclassified - EI 60 | 40 mm | TP FIRE S | 25 - 35 dB |

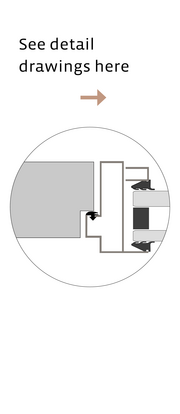

TD02 | REBATED WOODEN DOORS
Rebated solid doors are the ideal solution for projects with high demands to sound insulation. The door leaf is of solid wood and drop seal provides even better sound insulation. Standard colour is white NCS S-0502Y. Optionally special colours.
The door is fitted in all variants of the glass wall systems TRIPLAN LITE®.
Door frame
The rebated solid door is fitted in the TRIPLAN LITE® 02-frame - a specially designed acoustic frame, that is easily assembled on site. The doorframe is in aluminium, anodized or powder coated in either white RAL 9010 or black RAL 9005. The doorframes may optionally be supplied in special colours.
The solid door can optionally be fitted in the TP FIRE-steel frame – a doorframe that is taylor made to each project and delivered pre-welded from factory. A suitable door type for projects with demands to fire resistance or for extra strong door. An ideal solution for buildings with a high degree of wear and tear such as hospitals, schools and institutions. The doorframe is of steel and hot galvanized and powder coated in a RAL colour.
Dimensions
Solid doors are available as single or double doors with or without glass above.
Standard doors are 9M (825mm) but optionally available in 10M and in full height.
Ironmongery
Comes with Abloy 3228 pin hinges and an Abloy lock case. Lock case to be agreed upon. Door colour NCS 0502Y or special colour.
| Door type | Wall type | Door leaf | Frame | Sound reduction door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| TD 02 | TRIPLAN LITE® 34 - 43 dB | 62 mm | TRIPLAN LITE® 02/TPM | 35 - 40 dB | ||||
| TD 02 | TRIPLAN LITE® 47 - 50 dB | 62 mm | TRIPLAN LITE® 02/TPM | 35 - 40 dB | ||||
| TD 02 | TRIPLAN LITE® EW 30 - EI 60 | 62 mm | TP FIRE S | 35 - 40 dB | ||||
| TD 02 | TP FIRE uklassificeret - EI 60 | 62 mm | TP FIRE S | 35 - 40 dB |

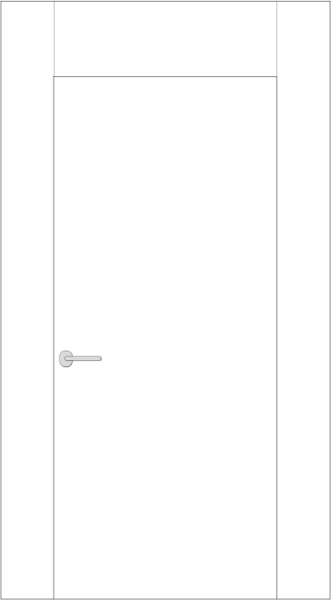

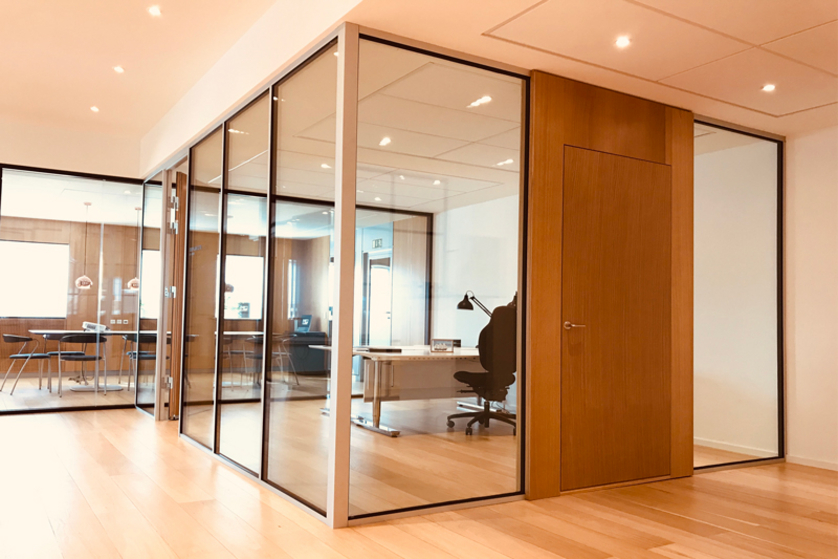

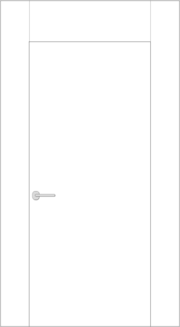

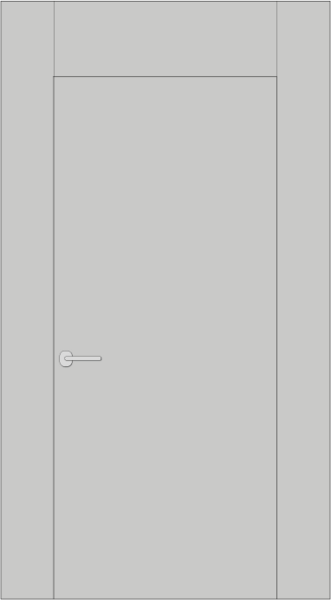

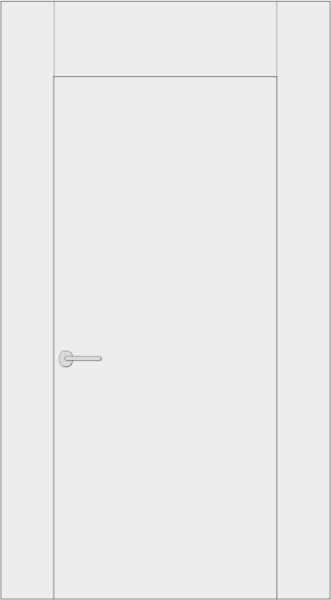

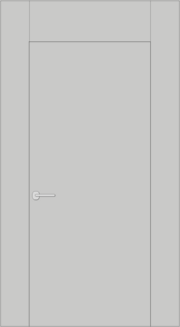

TDP 01 | WOODEN PORTAL DOORS
The portal door is a well-designed and innovative door solution that combines a high degree of functionality with an elegant design. The portal door, with fire resistance up to EI 60 and noise reduction up to 40 dB Rw, can be installed in all types of the TRIPLAN LITE® glass wall systems.

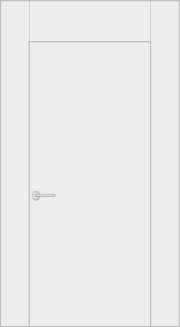

Triplan TDP 01 wooden door is supplied as standard with white painted surface or veneer in oak or ash, other colors and veneer types can be supplied as desired.
Door frames
In a closed position, the door leaf is completely integrated, the doorframes are hidden in the side panels and no visible screws are found. Side and top panels are made with the same surface as the door leaf and are removable, so there is the possibility of concealed routing of power cables and other electrical installations.
Dimensions
Portal doors are available as single-wing doors, as standard with M10 x 21 door leaves. The standard dimensions of the portal are 14M, 15M or 16M with a depth of 122 mm. Height from 2231 - 3030 mm.
| Door type | Wall type | Door leaf | Frame | Sound reduction door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| TDP 01 | TRIPLAN LITE® 34 -43 dB | 40 mm | TDP | 25 - 35 dB | ||||
| TDP 01 | TRIPLAN LITE® 46 - 50 dB | 60 mm | TDP | 35 - 40 dB | ||||
| TDP 01 | TRIPLAN LITE® E 30 - EI 60 | 62 mm | TDP | 35 - 40 dB |

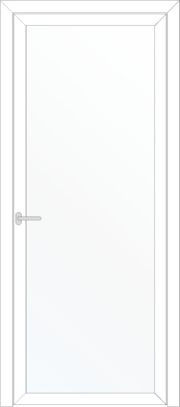

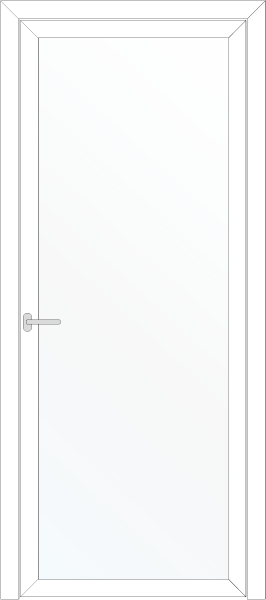

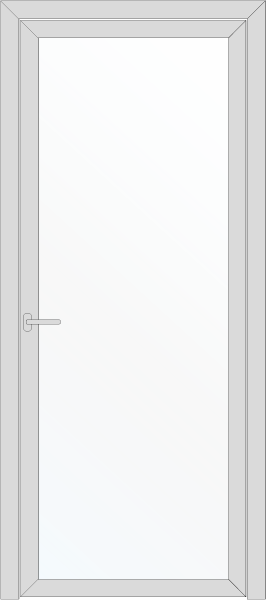

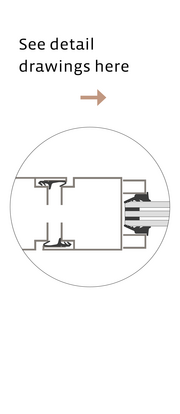

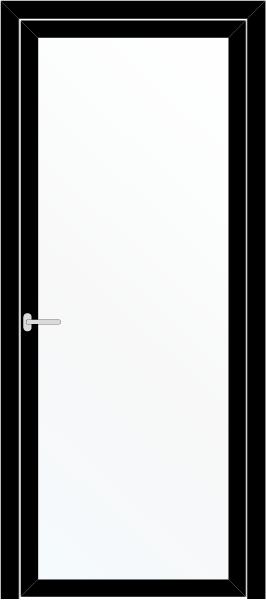

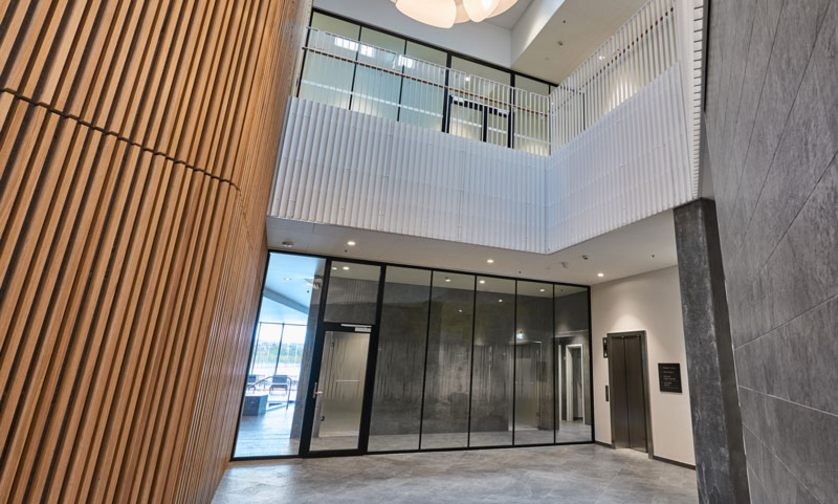

SGD 01 | STEEL FRAMED GLASS DOORS
A steel framed glass door is a suitable door type for projects with demands to fire resistance or for extra strong doors. The door is suitable for the fire rated glass wall system TP FIRE S with steel sections and also for the system TRIPLAN LITE® EW 30 - EI 60.
Door leaf
The door leaf consists of a glass pane fitted inside a steel frame.
Door frame
The steel door frame is fitted in the TRIPLAN FIRE®-frame – a doorframe that is taylor made to each project and delivered pre-welded from factory. The doorframe is of steel and hot galvanized and powder coated in a RAL colour.
Dimensions
Standard doors are 9M (825mm) but optionally available in 10M and in full height. Doors are available as single or double doors with or without glass above.
Ironmongery
The door sets come optionally with door closers, electric strike plate, panic bars etc.
| Door type | Wall type | Door leaf | Frame | Sound reduction door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| SGD 01 | TRIPLAN LITE® E - EI | 13 - 31 mm glas | TP FIRE S | 39 - 43 dB | ||||
| SGD 01 | TP FIRE S | 10 - 31 mm glas | TP FIRE S | 34 - 43 dB |

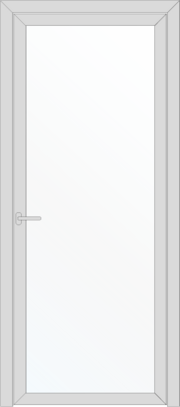

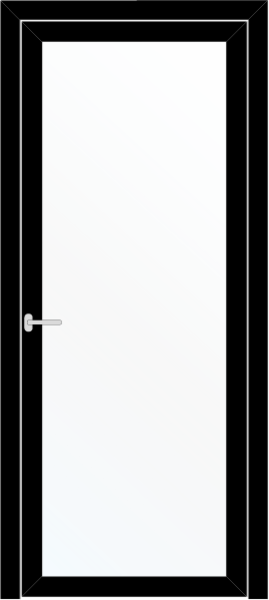

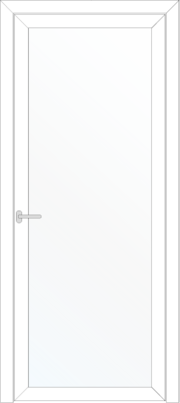

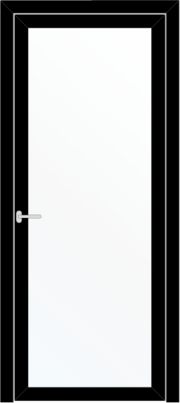

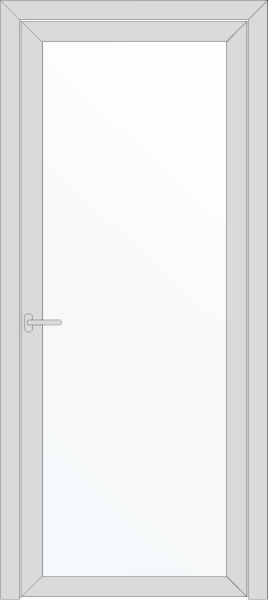

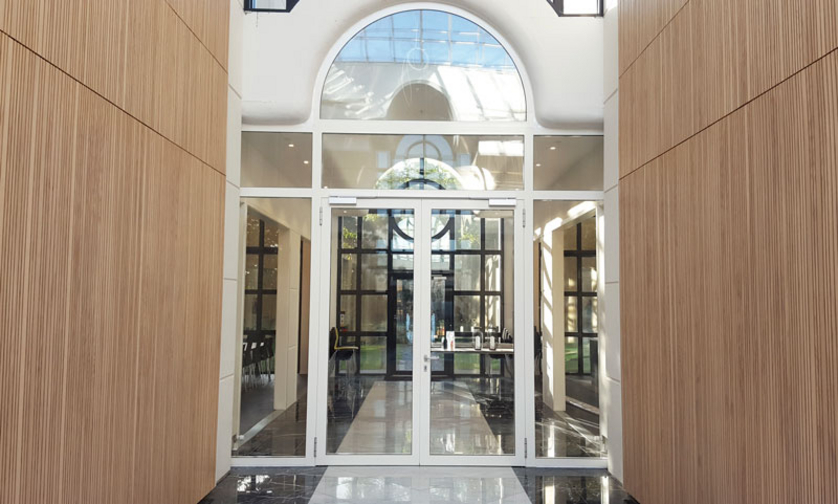

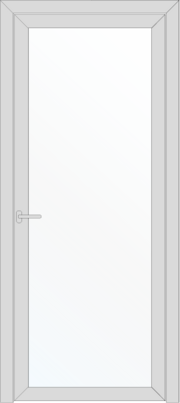

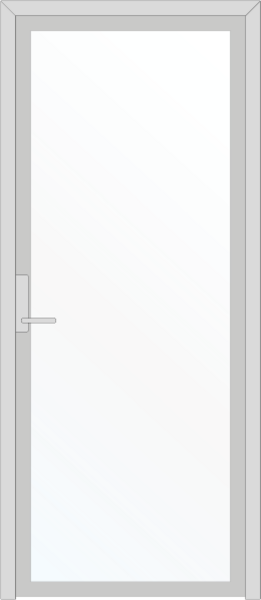

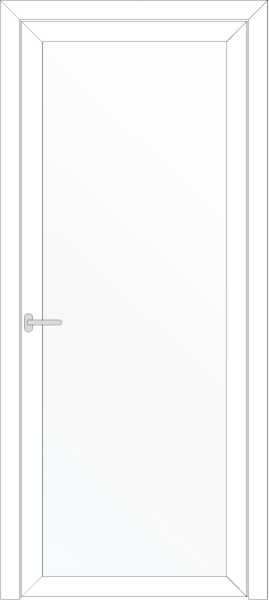

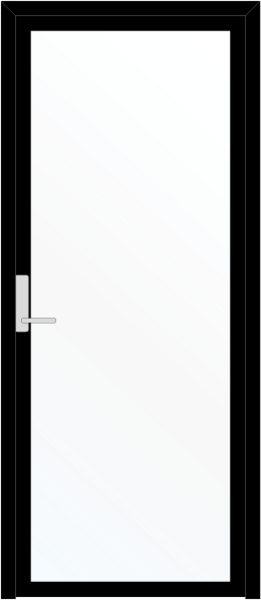

AGD 01 | ALU FRAMED GLASS DOORS
A framed glass door is an option for TP FIRE- alu doorframes and is a suitable choice if there is a demand to fire resistance. The door is designed to be used with the fire rated glass system TP FIRE A with alu framing.
Door leaf
The door leaf consists of a glass pane fitted in an alu frame.
Door frame
The alu framed glass door is used with the TRIPLAN FIRE®- alu doorframe - a doorframe that is taylor made to the project and comes pre-assembled from factory. The doorframe is in aluminium and comes anodized or optionally powder coated.
Standard doors are 9M (825mm) but optionally available in 10M and in full height. Doors are available as single or double doors with or without glass above.
Ironmongery
The door sets come optionally with door closers, electric strike plate, panic bars etc.
| Door type | Wall type | Door leaf | Frame | Sound reduction door leaf | ||||
|---|---|---|---|---|---|---|---|---|
| AGD 01 | TP FIRE A unclassified - EI 60 | 10 - 31 mm glas | TP FIRE A | 34 - 43 dB |
| Door type | Description | Door leaf | Tchickness | Frame | ||||
|---|---|---|---|---|---|---|---|---|
| GD 01 | Glass door | Glass | 10 - 12.76 mm | TRIPLAN LITE® 01 and 02/TPM | ||||
| GD 02 | 2-layered glass door | Glass | 47 mm | TRIPLAN LITE® 01/TPM | ||||
| TD 01 | Wooden door | Timber | 40 mm | TRIPLAN LITE® 01 og 02/TPM/TP FIRE S | ||||
| TD 02 | Rebated wooden door | Timber | 62 mm | TRIPLAN LITE® 02/TPM/TP FIRE S | ||||
| TDP 01 | Wooden portal door | Timber | 40/60 mm | TDP | ||||
| SGD 01 | Steel framed glass door | Glass | 50/60/70 mm | TP FIRE S | ||||
| AGD 01 | Alu framed glass door | Glass | 65/80 mm | TP FIRE A |
