Triplan Fire-rated glass walls

TP Fire Lite fire-rated full glass partion

Our popular fire-rated wall TP Fire, is a glass frame partition that complies with all fire requirements. Triplan also has a number of module-constructed system walls (Flexica, Flexica Line and Ventura/Open), which comply with various requirements for fire classification.


TP Fire - a fire-rated glass partition

Triplan’s fire-rated glass partition, TP Fire is an elegant glass wall, known for slim sections and aesthetic details that also look nice even at close distance.  TP Fire is an effective fire-retardant system with a single layer of glass and steel or aluminium frames with slim joints.  TP Fire is delivered with fire classification E30-EI60 and of course with an option for individual sizes.


Look at the product brochure and assembly instruction here:

and find more assembly instructions on our download page with technical info


Product brochure
TP Fire Product brochure
Assembly instruction EI 30
TP Fire Assembly instruction EI 30

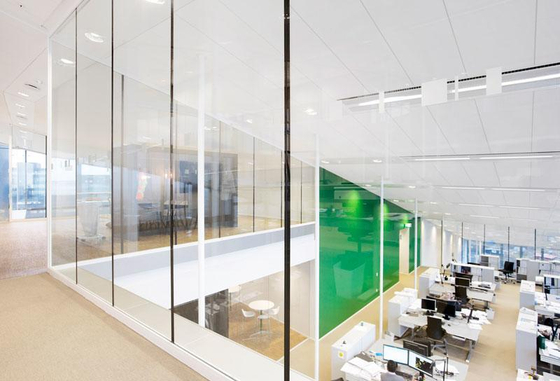

TP Fire Lite - a full glass solution

TP Fire is also available as a full glass solution TP Fire Lite with 4 mm sealed joints with fire classification EI30 and EI60 (as wells as EW30 and EW60 in steel).


Fire-rated TP Fire glass doors are available as single and double doors with or without glazed overpanels and possibly with drop seal. Doors can be delivered with door closer.


Please contact Triplan at


+45 43 53 99 99


for more information about fire-rated doors and the hardware on the doors.


TP Fire - also good for high acoustic requirements

TP Fire is a fire-rated glass partition that also can meet different sound-reduction requirements. For example complies TP Fire Lite with 31 mm glass thickness  a sound-reduction requirement of 43 dB. Look at the TP Fire Lite wall types for more information.


Choose between

TP Fire S, the elegant fire-rated glass wall with steel frames.
TP Fire A, the strong fire-rated glass wall with aluminium frames and
TP Fire Lite, the fire-rated full glass wall without joints



Fire-rated glass partition Triplan TP Fire S

Triplans fire-rated system walls

Triplan also has a number of system walls (FlexicaFlexica Line and Ventura/Open), which comply with various requirements for fire classification. Flexica and Flexica Line is delivered as module-constructed glass walls or with a combination of glass and solid modules. Ventura/Open is a closed wall.


We divide our fire-classified walls into categories E30EW30EW60EI30, EI60 og EI90 and more so it is easier for you to choose the right type of wall.


For other requirements, please contact Triplan at


+45 43 53 99 99



Triplan TP Fire fire-rated glass wall

Triplan A/S produce all steel and aluminium frames in house in our own factory – this means that we can supply high quality at a very short notice.


We are known to test the best solutions for the design, materials and function by building mock-up's and produce prototypes - often in close collaboration with our customers - and this is only possible when our production is located in Denmark.


Our production facilities are modern and flexible, which makes it possible for Triplan to offer totally individual solutions, whether it is a fire-rated glass partition in a dry wall or a concrete wall ot you need a fire-rated glass partition from ceiling to floor.



To the top

To the top

Fire-rated glass partitions - the TP Fire system

TP Fire S
The steel frames are delivered with the surface treatment you want. With fire-rated glass in E30, EW30, EW60, EI30 og EI60. Also delivered with unclassified glass partitions, a robust and suitable solution for buildings with a lot of wear.


TP Fire A
Aluminium frames are delivered naturally anodised or in white, but can also be delivered as you wish.
With fire-rated glass in E30, EW30, EI30 og EI60 or unclassified.


TP Fire Lite
Fire-rated full glass wall, sealed without metal joints, with steel or aluminium frames.In aluminium with fire-resistant glass rated EI30 or EI60. In steel, TP Fire Lite is also available with EW30 and EW60 ratings.


There are a number of regulations and definitions regarding fire safety requirements..


Various links are shown below to help you get an overview of which requirements are applicable:
