    HOME > PRODUCTS > FIRE-RATED GLASS WALLS > TP FIRE LITE

    L1 - TOP SOLUTIONS

    In the TP Fire Lite system, the glass is built in in a simple frame system - either in steel with a frame thickness of 72 mm and an installation depth of 50-70 mm, depending on the classification requirement. Or in aluminium with a frame thickness of 69 mm and an installation depth of 80 mm.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

    Top solution TP Fire Lite S. EI60. Section depth 70 mm.
    Top solution TP Fire Lite S. EI60. Section depth 70 mm.
    Top solution TP Fire Lite S. EI30. Section depth 60 mm.
    Top solution TP Fire Lite S. EI30. Section depth 60 mm.
    Top solution TP Fire Lite S. Unclass. - EW60. Section depth 50 mm.
    Top solution TP Fire Lite S. Unclass. - EW60. Section depth 50 mm.

    L2 - BOTTOM SOLUTIONS

    In the TP Fire Lite system, the glass is built in in a simple frame system - either in steel with a frame thickness of 72 mm and an installation depth of 50-70 mm, depending on the classification requirement. Or in aluminium with a frame thickness of 69 mm and an installation depth of 80 mm.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

    Bottom solution TP Fire Lite S. EI60. Section depth 70 mm.
    Bottom solution TP Fire Lite S. EI60. Section depth 70 mm.
    Bottom solution TP Fire Lite S. EI30. Section depth 60 mm.
    Bottom solution TP Fire Lite S. EI30. Section depth 60 mm.
    Bottom solution TP Fire Lite S. Unclass. - EW60. Section depth 50 mm.
    Bottom solution TP Fire Lite S. Unclass. - EW60. Section depth 50 mm.

    L3 - VANDRET MODULSAMLING

    TP Fire Lite-systemet kan leveres med overglas over døre. Glasfelter er i fuld højde.

    Find alt materiale om TP Fire på vores side med download

    L4 - DOOR SOLUTION WITH GLAZED OVERPANEL

    Steel or aluminium framed door with glazed overpanel.



    If drawings are wanted for a solid door and drawings for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

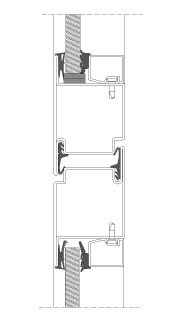

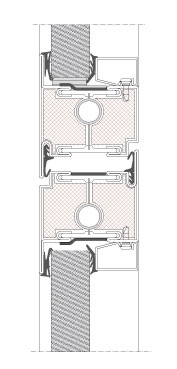

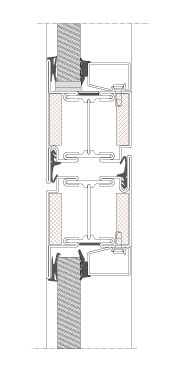

    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. EI60.
    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. EI60.
    Vertical section TP Fire Lite S. Steel-framed door. EI60. Bottom solution.
    Vertical section TP Fire Lite S. Steel-framed door. EI60. Bottom solution.
    Vertical section TP Fire Lite S. Steel-framed door. EI60. Bottom solution with drop seal.
    Vertical section TP Fire Lite S. Steel-framed door. EI60. Bottom solution with drop seal.
    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. EI30.
    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. EI30.
    Vertical section TP Fire Lite S. Steel-framed door. EI30. Bottom solution with or without drop seal.
    Vertical section TP Fire Lite S. Steel-framed door. EI30. Bottom solution with or without drop seal.
    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. Unclass. - EW60.
    Vertical section TP Fire Lite S. Steel-framed door with glazed overpanel. Unclass. - EW60.
    Vertical section TP Fire Lite S. Steel-framed door. Unclass. - EW60. Bottom solution with or without drop seal.
    Vertical section TP Fire Lite S. Steel-framed door. Unclass. - EW60. Bottom solution with or without drop seal.

    L5 - DOOR SOLUTION FULL HEIGHT DOOR

    Steel or aluminium framed door with full height.



    If drawings are wanted for a solid door and drawings for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

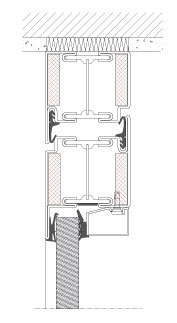

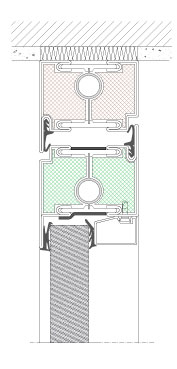

    Vertical section TP Fire Lite S. Steel-framed door with full height. EI60.
    Vertical section TP Fire Lite S. Steel-framed door with full height. EI60.
    Vertical section TP Fire Lite S. Steel-framed door with full height. EI30.
    Vertical section TP Fire Lite S. Steel-framed door with full height. EI30.

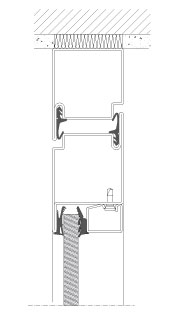

    Vertical section TP Fire Lite S. Steel-framed door with full height. Unclass. - EW60.
    Vertical section TP Fire Lite S. Steel-framed door with full height. Unclass. - EW60.

    V1 - DOOR SOLUTION AGAINST WALL

    If drawings are wanted for a solid door and drawings for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

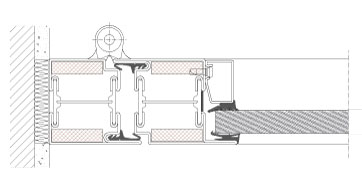

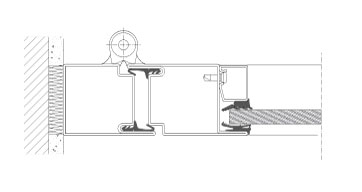

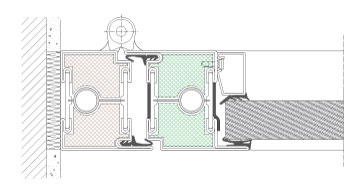

    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. EI60. Section depth 70 mm.
    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. EI60. Section depth 70 mm.
    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. EI30. Section depth 60 mm.
    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. EI30. Section depth 60 mm.
    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. Unclass. - EW60. Section depth 50 mm.
    Horizontal section TP Fire Lite S. Door solution against wall. Steel-framed door. Unclass. - EW60. Section depth 50 mm.

    V2 - DOOR SOLUTION WITH STRIKING-PLATE SIDE

    Steel or aluminium frame with glass or solid door.


    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

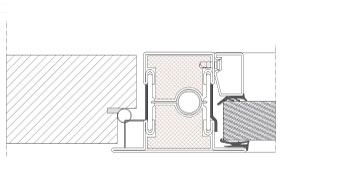

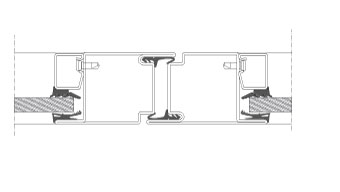

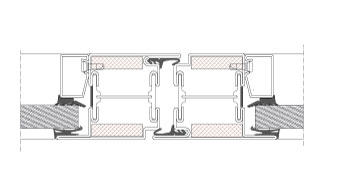

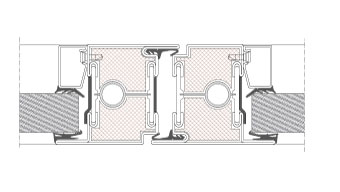

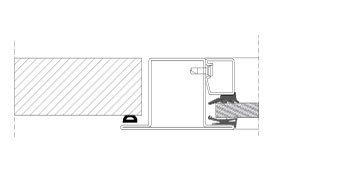

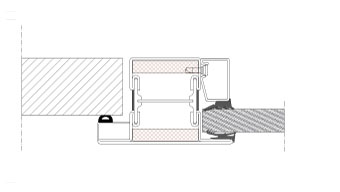

    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. EI60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. EI60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. EI30.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. EI30.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. Unclass. - EW60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel-framed glass door. Unclass. - EW60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. EI60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. EI60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. EI30.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. EI30.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. Unclass. - EW60.
    Door solution TP Fire Lite S striking-plate side. Horizontal section. Steel frame with solid door. Unclass. - EW60.

    V3 - MODULE JOINT

    Glass fields are jointed with fire sealant strips and the sealed with silicone fire sealant.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

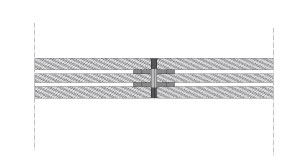

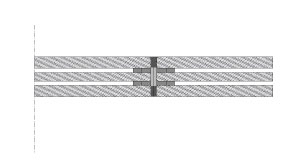

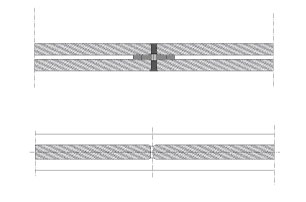

    Horizontal section TP Fire Lite. Module joint EI60. Joint with 4 mm sealant.
    Horizontal section TP Fire Lite. Module joint EI60. Joint with 4 mm sealant.
    Horizontal section TP Fire Lite. Module joint EI30. Joint with 4 mm sealant.
    Horizontal section TP Fire Lite. Module joint EI30. Joint with 4 mm sealant.
    Horizontal section TP Fire Lite. Module joint Unclass. - EW60. Joint with 4 mm fire sealant or 2 mm dry silicone tape.
    Horizontal section TP Fire Lite. Module joint Unclass. - EW60. Joint with 4 mm fire sealant or 2 mm dry silicone tape.

    V4 - CORNER SOLUTION

    Contact Triplan to learn more about which corner solutions there are in the TP Fire Lite system.

    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page













    V5 - JOINTING TO WALL

    Jointed with steel or aluminium frame section with widths of 72 mm or 69 mm, respectively. Installation depths of 50-70 mm respectively (or 50/65 - 80 mm for TP Fire Lite A), depending of the fire requirement.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

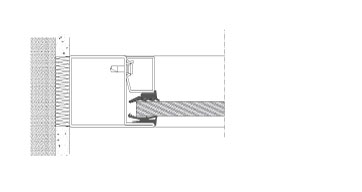

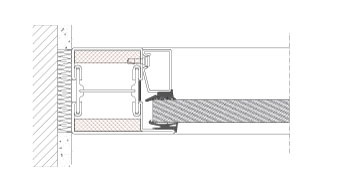

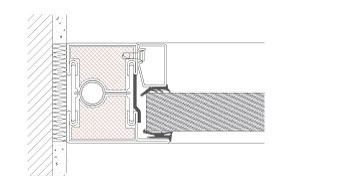

    TP Fire Lite S. Joint against the wall. EI60.
    TP Fire Lite S. Joint against the wall. EI60.
    TP Fire Lite S. Joint against the wall. EI30.
    TP Fire Lite S. Joint against the wall. EI30.
    TP Fire Lite S. Joint against the wall. Unclass. - EW60.
    TP Fire Lite S. Joint against the wall. Unclass. - EW60.

    V6 - DOOR SOLUTION DOUBLE DOOR

    TP Fire double door in steel or aluminium frame.



    If drawings are wanted for a solid door and drawings for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

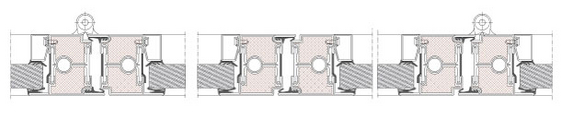

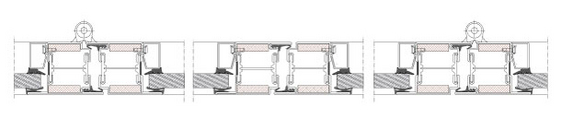

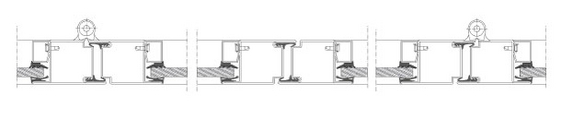

    Double door TP Fire Lite S. Horizontal section. Steel-framed door. EI60.
    Double door TP Fire Lite S. Horizontal section. Steel-framed door. EI60.
    Double door TP Fire Lite S. Horizontal section. Steel-framed door. EI30.
    Double door TP Fire Lite S. Horizontal section. Steel-framed door. EI30.
    Double door TP Fire Lite S. Horizontal section. Steel-framed door. Unclass. - EW60.
    Double door TP Fire Lite S. Horizontal section. Steel-framed door. Unclass. - EW60.

    V7 - DOOR SOLUTION HINGE SIDE

    Module jointing. Door, hinge side. Steel or aluminium frame with glass or solid door.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

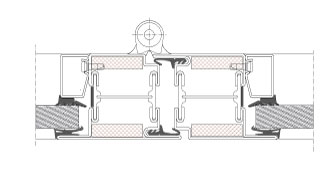

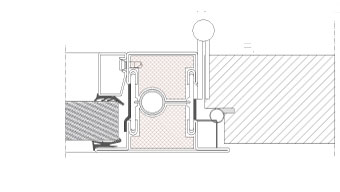

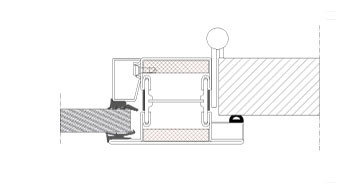

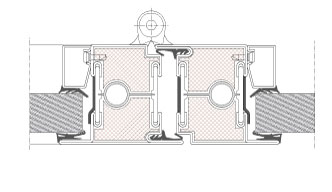

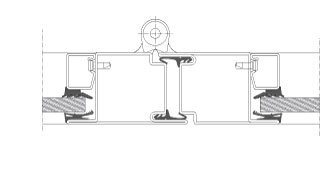

    Horizontal section. TP Fire Lite S. Steel-framed glass door. EI60.
    Horizontal section. TP Fire Lite S. Steel-framed glass door. EI60.
    Horizontal section. TP Fire Lite S. Steel-framed glass door. EI30.
    Horizontal section. TP Fire Lite S. Steel-framed glass door. EI30.
    Horizontal section. TP Fire Lite S. Steel-framed glass door. Unclass. - EW60.
    Horizontal section. TP Fire Lite S. Steel-framed glass door. Unclass. - EW60.

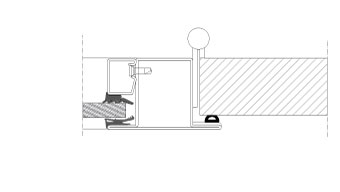

    Horizontal section. TP Fire Lite S. Steel-framed solid door. EI60.
    Horizontal section. TP Fire Lite S. Steel-framed solid door. EI60.
    Horizontal section. TP Fire Lite S. Steel-framed solid door. EI30.
    Horizontal section. TP Fire Lite S. Steel-framed solid door. EI30.
    Horizontal section. TP Fire Lite S. Steel-framed solid door. Unclass. - EW60.
    Horizontal section. TP Fire Lite S. Steel-framed solid door. Unclass. - EW60.

    V8 - T JOINT

    Contact Triplan to learn more about which T joint solutions there are in the TP Fire Lite system.



    If drawings are wanted for TP Fire Lite A, please contact Triplan at

    +45 43 53 99 99



    Find all information about TP Fire Lite on our download page

















    To the top

    To the top

    Read more about TP Fire Lite fire-rated full glass walls



    Here you can find TP Fire Lite brochure and drawings

    Find more information on our download page

    TP FIRE LITE

    Click on the numbers to see the details and the different versions.

    L1
    L2
    L3
    L4
    L4
    L5

    Vertical section

    L1: Top solution

    L2: Bottom solution

    (L3: Module joint)

    L4: Door solution

    L5: Dørløsning full-height door

    V1
    V2
    V3
    V4
    V5
    V6
    V7
    V8
    V4
    V4

    Horizontal section

    V1: Door solution against wall

    V2: Door solution striking-plate side

    V3: Modue joint

    V4: Corner solution

    V5: Joint against the wall

    V6: Door solution double door

    V7: Door solution hinge side

    V8: T joint
