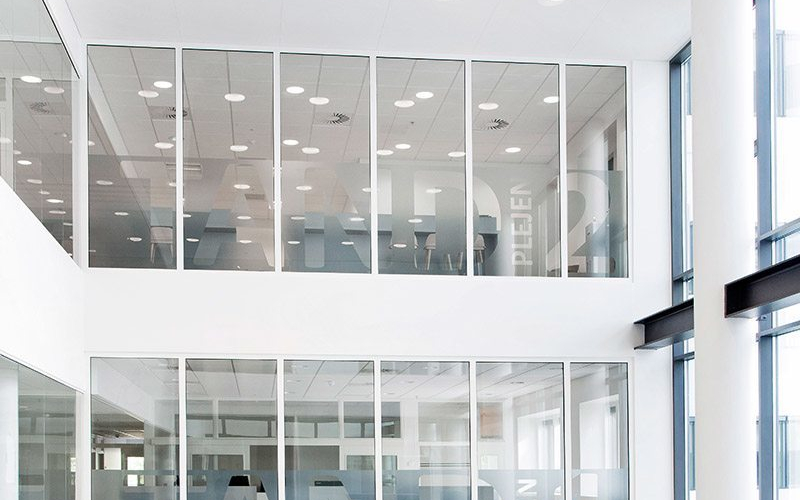

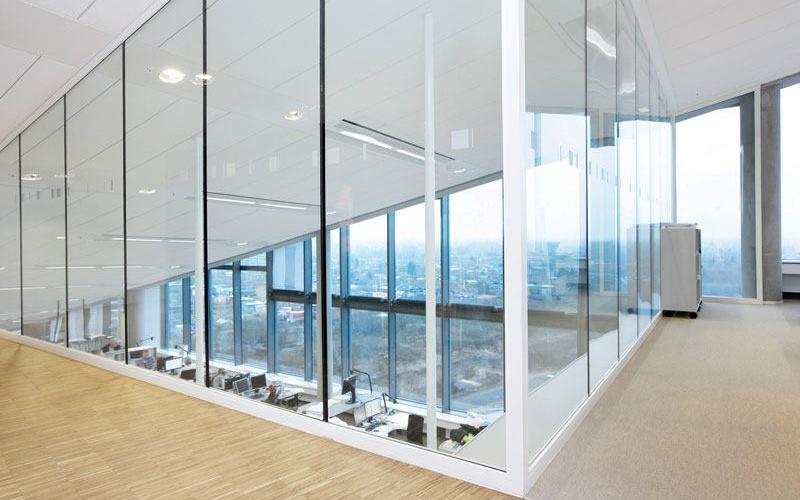

Atrium med TP Fire S glasvægge i hvide profiler. Sundhedens Hus i Vejle. TP Fire Lite. EI30 fire-rated glass wall. Rambøll headquarters, Ørestaden, Denmark
TP Fire Lite. EI30 brandglasvæg. Rambøll hovedkontor, Ørestaden. TP Fire Lite. EI30 fire-rated glass wall. Rambøll headquarters, Ørestaden, Denmark

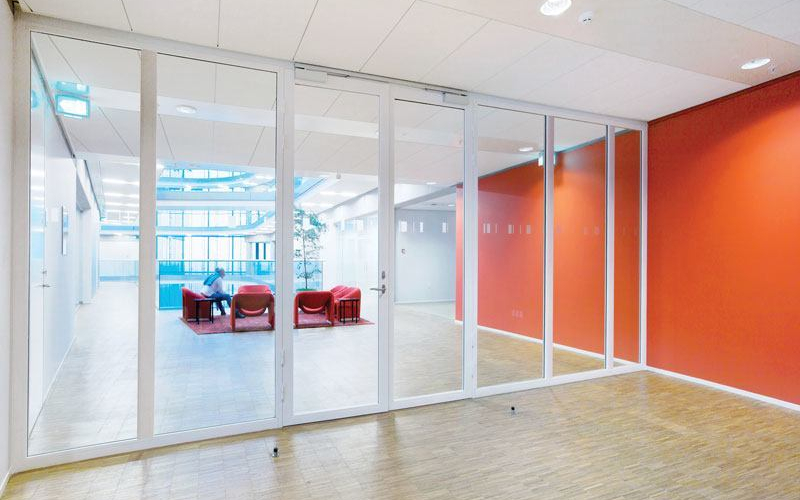

TP Fire S EI30-parti. Dobbelt stålrammedør med dørlukker. Rambøll hovedkontor, Ørestaden. TP Fire S EI30 partition. Double steel frame door with door closer. Rambøll headquarters, Ørestaden, Denmark

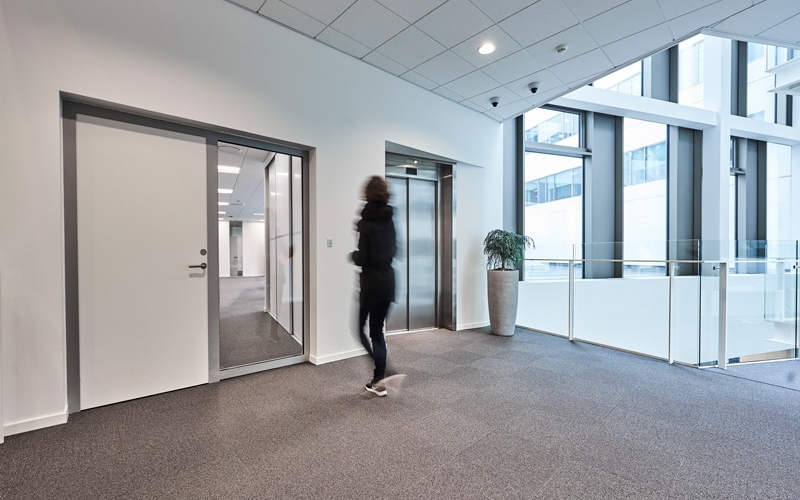

TP Fire S massivdør med sideparti i glas. Semco Maritime i Esbjerg. TP Fire S solid door with glazed sidepanel. Semco Maritime in Esbjerg.

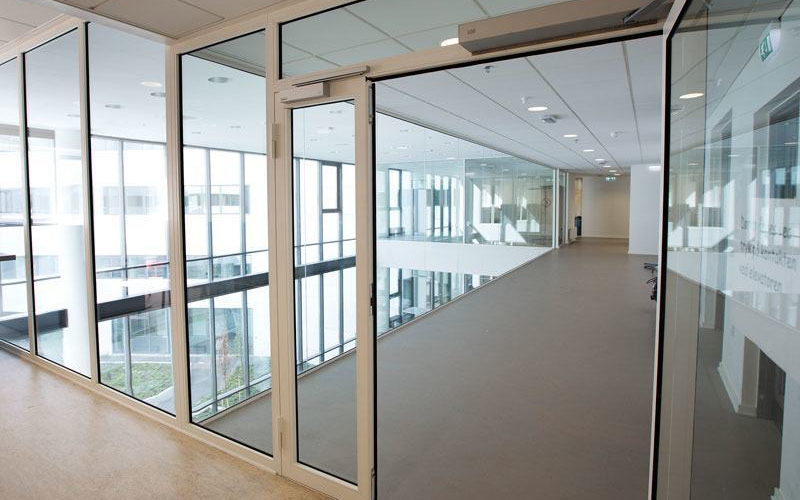

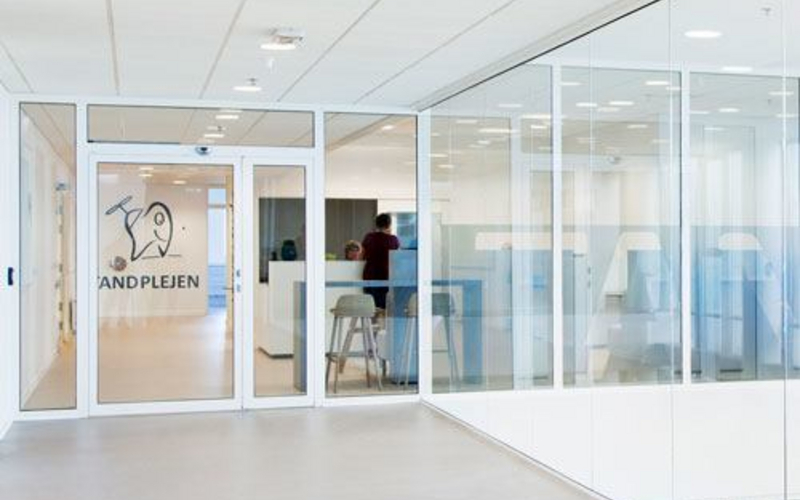

TP Fire S dobbeltdør med dørlukker og ekstra stort gående parti. Sundhedens Hus i Vejle. TP Fire S double door with a door closer and an extra wide active door. Sundhedshus Vejle [the health building at the health centre] in Vejle, Denmark.

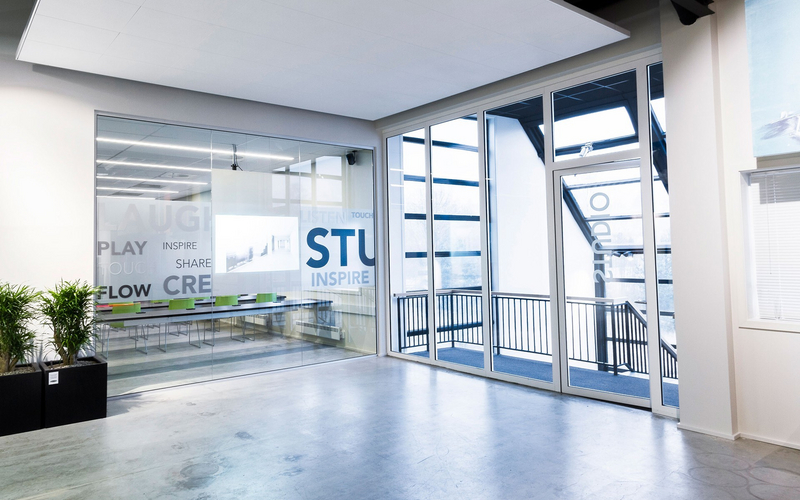

Klassisk TP Fire S-løsning mod trappeopgang. Creo Nordic showroom, Oslo. Classic TP Fire S solution towards stairwell. Creo Nordic showroom, Oslo, Norway.
TP Fire S dobbeltdør med dørlukker og ekstra stort gående parti. Sundhedens Hus i Vejle. TP Fire S double door with a door closer and an extra wide active door. Sundhedshus Vejle [the health building at the health centre] in Vejle, Denmark.

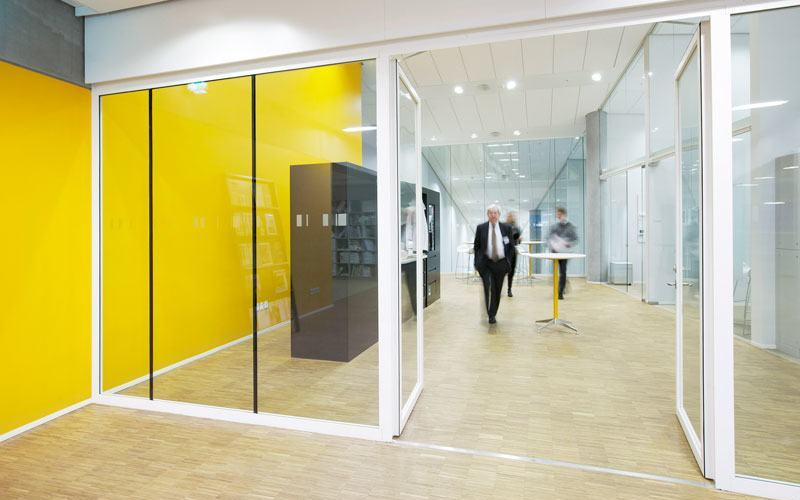

TP Fire Lite brandglasvæg EI30. Dobbelt stålrammedør med dørlukker. Rambøll hovedkontor, Ørestaden. Double steel frame door with door closer. TP Fire Lite fire-rated full glass wall EI30. Rambøll headquarters, Ørestaden, Denmark

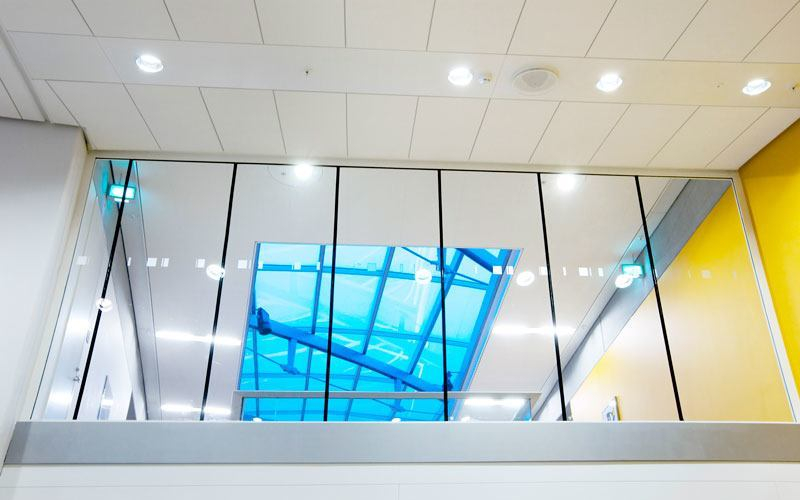

TP Fire Lite brandglasvæg EI30. Overparti mod atrium. Rambøll hovedkontor, Ørestaden. TP Fire Lite fire-rated glass wall EI30. Upper section towards atrium. Rambøll headquarters, Ørestaden, Denmark

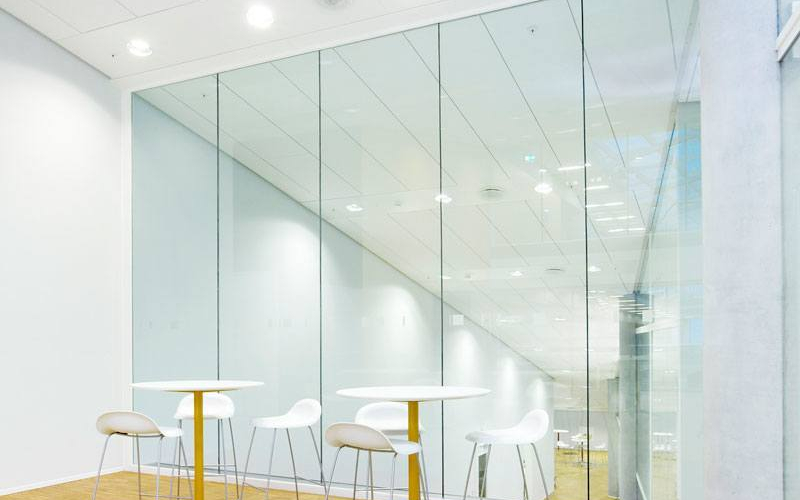

TP Fire Lite brandglasvæg. Hjørneløsning EI30 brandglasvæg. Rambøll hovedkontor, Ørestaden. TP Fire Lite fire-rated glass wall EI30. Corner solution. Rambøll headquarters, Ørestaden, Denmark

TP Fire S - a strong and attractive fire-rated glass partition in steel frames

Triplan delivers classified and unclassified steel-framed glass doors with side lights, which comply with fire requirements such as E30, EI30, E60 and EI60, as well as various sound requirements and requirements for smoke sealing as per the norm CSA. Our production facilities are modern and flexible, which makes it possible for Triplan to offer totally individual solutions, sizes, and exactly the door fittings that make the project unique - without resulting in long delivery times.

Glass partitions

The glass partitions are delivered with a single layer of glass, typically fire-rated glass with thicknesses from 6-41 mm, depending on the fire rating wanted. Junction with transoms or as TP FIRE LITE: A full glass wall with sealed joints. An attractive and simple system - so nice! Here, Triplan delivers a TP Fire solution in full glass, which in a steel frame can comply with fire requirements such as EW 30, EI 30, EW 60 and EI 60, as well as various sound requirements and the CSA requirements for smoke sealing.

Look at the different TP Fire S walltypes

Steel frames

The steel frames are delivered with the surface treatment you want. The frame thickness is 48 mm (unclassified steel frame partitions have a 45 mm frame thickness), the installation depth is 50-70 mm depending on the classification requirement and the joint thickness is 70 mm. Do you want space for installation of cables in the profiles, you can choose to go up in dimensions, which is shown on our drawings.

See detail drawings

Unclassified steel frame partitions

TP Fire S is also delivered with unclassified glass partitions, a robust and suitable solution for buildings with a lot of wear, such as hospital buildings, schools and institutions.
