    HOME > PRODUCTS > FIRE-RATED GLASS WALLS > TP FIRE S

    L1 - TOP SOLUTIONS

    In the TP Fire S system, the glass is built in in a simple frame system with a frame thickness of 72 mm and an installation depth of 50-70 mm, depending on the classification requirement.

    Find all information about TP Fire on our download page

    Top solution TP Fire S. EI60. Section depth 70 mm.
    Top solution TP Fire S. EI60. Section depth 70 mm.
    Top solution TP Fire S. EI30. Section depth 60 mm.
    Top solution TP Fire S. EI30. Section depth 60 mm.
    Top solution TP Fire S. Unclass. - EW60. Section depth 50 mm.
    Top solution TP Fire S. Unclass. - EW60. Section depth 50 mm.

    L2 - BOTTOM SOLUTIONS

    In the TP Fire S system, the glass is built in in a simple frame system with a frame thickness of 72 mm and an installation depth of 50-70 mm, depending on the classification requirement.

    Find all information about TP Fire on our download page

    Bottom solution TP Fire S. EI60. Section depth 70 mm.
    Bottom solution TP Fire S. EI60. Section depth 70 mm.
    Bottom solution TP Fire S. EI30. Section depth 60 mm.
    Bottom solution TP Fire S. EI30. Section depth 60 mm.
    Bottom solution TP Fire S. Unclass. - EW60. Section depth 50 mm.
    Bottom solution TP Fire S. Unclass. - EW60. Section depth 50 mm.

    L3 - HORIZONTAL SOLUTIONS

    In the TP Fire S system, the glass is built in in a simple frame system with a frame thickness of 72 mm and an installation depth of 50-70 mm, depending on the classification requirement.

    Find all information about TP Fire on our download page

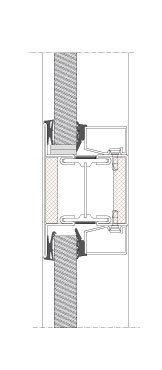

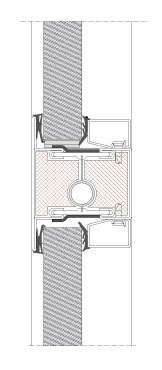

    Module joint TP Fire S. Vertical section. EI60. Section depth 70 mm.
    Module joint TP Fire S. Vertical section. EI60. Section depth 70 mm.
    Module joint TP Fire S. Vertical section. EI30. Section depth 60 mm.
    Module joint TP Fire S. Vertical section. EI30. Section depth 60 mm.

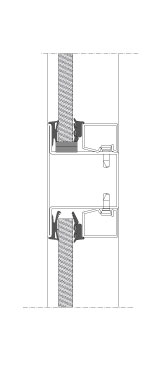

    Module joint TP Fire S. Vertical section. Unclass. - EW60. Section depth 50 mm.
    Module joint TP Fire S. Vertical section. Unclass. - EW60. Section depth 50 mm.

    L4 - DOOR SOLUTION WITH GLAZED OVERPANEL

    Steel-framed glass door with glazed overpanel.


    If drawings are wanted for a solid door, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire on our download page

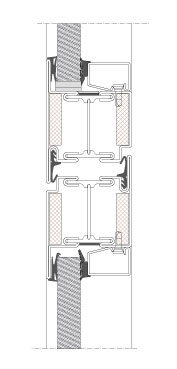

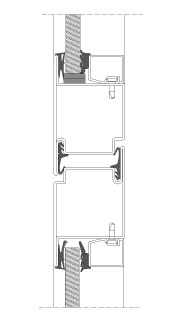

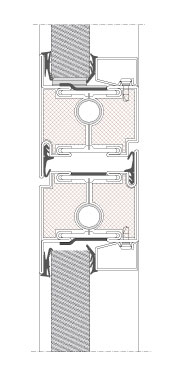

    Vertical section TP Fire. Steel frame door with glazed overpanel. EI60.
    Vertical section TP Fire. Steel frame door with glazed overpanel. EI60.
    Vertical section TP Fire. Steel frame door. EI60. Bottom solution.
    Vertical section TP Fire. Steel frame door. EI60. Bottom solution.
    Vertical section TP Fire. Steel frame door. EI60. Bottom solution with drop seal.
    Vertical section TP Fire. Steel frame door. EI60. Bottom solution with drop seal.
    Vertical section TP Fire. Steel frame door with glazed overpanel. EI30.
    Vertical section TP Fire. Steel frame door with glazed overpanel. EI30.
    Vertical section TP Fire. Steel frame door with glazed overpanel. EI30. Bottom solution with or without drop seal.
    Vertical section TP Fire. Steel frame door with glazed overpanel. EI30. Bottom solution with or without drop seal.
    Vertical section TP Fire. Steel frame door with glazed overpanel. Unclass. - EW60.
    Vertical section TP Fire. Steel frame door with glazed overpanel. Unclass. - EW60.
    Vertical section TP Fire. Steel frame door. Unclass. - EW60. Bottom solution with or without drop seal.
    Vertical section TP Fire. Steel frame door. Unclass. - EW60. Bottom solution with or without drop seal.

    L5 - DOOR SOLUTION FOR FULL-HEIGHT DOOR

    Full-height steel-framed glass door.



    If drawings are wanted for a solid door, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire on our download page

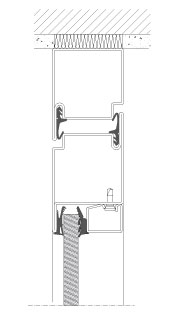

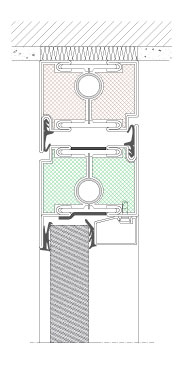

    Vertical section TP Fire. Full-height steel door. EI60.
    Vertical section TP Fire. Full-height steel door. EI60.

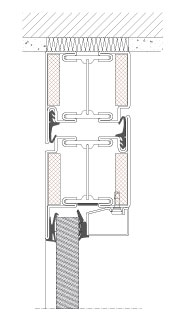

    Vertical section TP Fire. Full-height steel door. EI30.
    Vertical section TP Fire. Full-height steel door. EI30.
    Vertical section TP Fire. Full-height steel door. Uklass. - EW60.
    Vertical section TP Fire. Full-height steel door. Uklass. - EW60.

    V1 - DOOR SOLUTION AGAINST WALL

    Steel-framed glass door against wall.



    If drawings are wanted for a solid door, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire on our download page

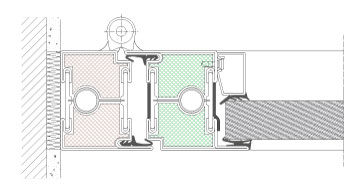

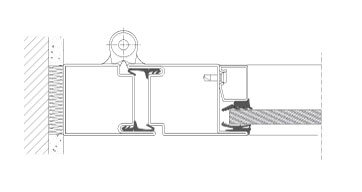

    Horizontal section TP Fire. Door solution against wall. Steel-framed door. EI60. Section depth 70 mm.
    Horizontal section TP Fire. Door solution against wall. Steel-framed door. EI60. Section depth 70 mm.

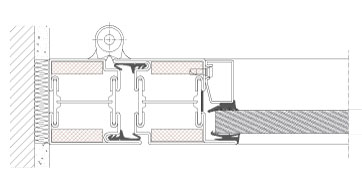

    Horizontal section TP Fire. Door solution against wall. Steel-framed door. EI30. Section depth 60 mm.
    Horizontal section TP Fire. Door solution against wall. Steel-framed door. EI30. Section depth 60 mm.
    Horizontal section TP Fire. Door solution against wall. Steel-framed door. Unclass. - EW60. Section depth 50 mm.
    Horizontal section TP Fire. Door solution against wall. Steel-framed door. Unclass. - EW60. Section depth 50 mm.

    V2 - DOOR SOLUTION STRIKING-PLATE SIDE

    Horizontal section. Steel frame with glass or solid door.

    Find all information about TP Fire on our download page

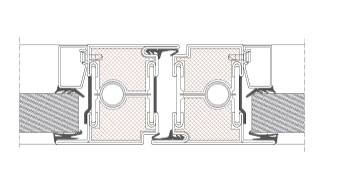

    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. EI60.
    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. EI60.

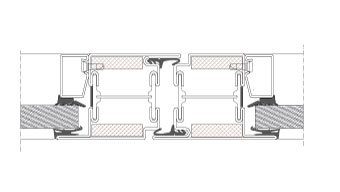

    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. EI30.
    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. EI30.
    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. Unclass. - EW60.
    Door solution TP Fire striking-plate side. Horizontal section. Steel-framed glass door. Unclass. - EW60.

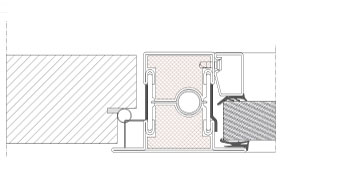

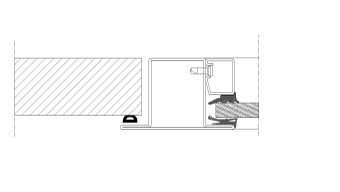

    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. EI60.
    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. EI60.

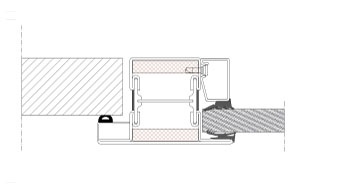

    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. EI30.
    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. EI30.
    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. Unclass. - EW60.
    Door solution TP Fire striking-plate side. Horizontal section. Steel frame with solid door. Unclass. - EW60.

    V3 - MODULE JOINTING

    Glass fields are jointed with 80 mm metal joint (unclassified - EW60) or 95 mm joint (EI30 and EI60).

    Find all information about TP Fire on our download page

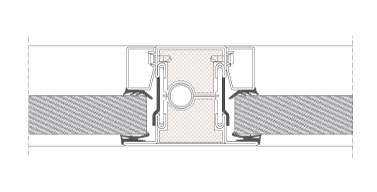

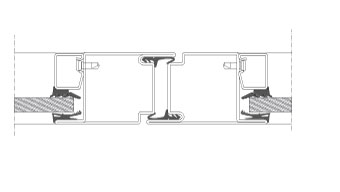

    Horizontal section TP Fire. Module joint EI60. Joint with 95 mm joint.
    Horizontal section TP Fire. Module joint EI60. Joint with 95 mm joint.

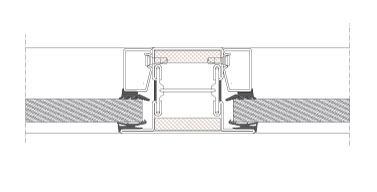

    Horizontal section TP Fire. Module joint EI30. Joint with 95 mm joint.
    Horizontal section TP Fire. Module joint EI30. Joint with 95 mm joint.

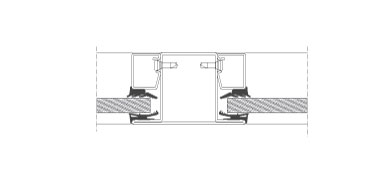

    Horizontal section TP Fire. Module joint Unclass. - EW60. Joint with 80 mm joint.
    Horizontal section TP Fire. Module joint Unclass. - EW60. Joint with 80 mm joint.

    V4 - CORNER SOLUTION

    Contact Triplan to learn more about which corner solutions there are in the TP Fire S system at



    +45 43 53 99 99



    Find all information about TP Fire on our download page













    V5 - JOINTING TO WALL

    Joint with frame section with a width of 72 mm. Installation depth 50-70 mm, depending on the fire requirement.

    Find all information about TP Fire on our download page

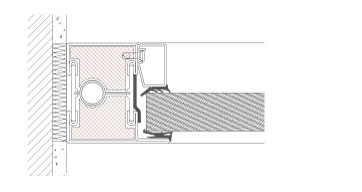

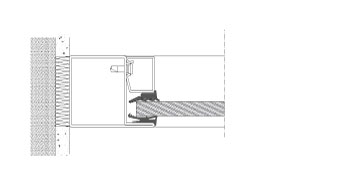

    TP Fire. Joint to wall. EI60.
    TP Fire. Joint to wall. EI60.

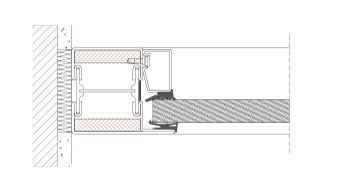

    TP Fire. Joint to wall. EI30.
    TP Fire. Joint to wall. EI30.
    TP Fire. Joint to wall. Unclass. - EW60.
    TP Fire. Joint to wall. Unclass. - EW60.

    V6 - DOOR SOLUTION DOUBLE DOOR

    TP Fire double door in steel frame.



    If drawings are wanted for a solid door, please contact Triplan at



    +45 43 53 99 99



    Find all information about TP Fire on our download page

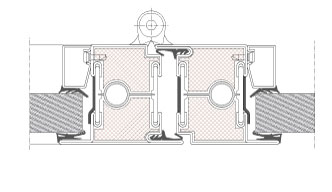

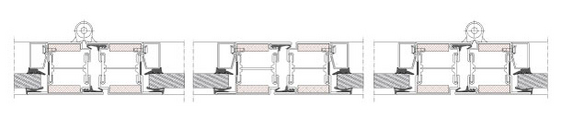

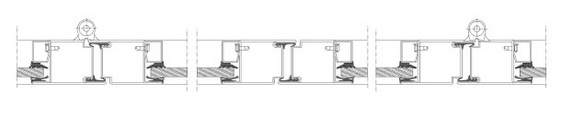

    Double door TP Fire. Horizontal section. Steel-framed door. EI60.
    Double door TP Fire. Horizontal section. Steel-framed door. EI60.
    Double door TP Fire. Horizontal section. Steel-framed door. EI30.
    Double door TP Fire. Horizontal section. Steel-framed door. EI30.
    Double door TP Fire. Horizontal section. Steel-framed door. Unclass. - EW60.
    Double door TP Fire. Horizontal section. Steel-framed door. Unclass. - EW60.

    V7 - DOOR SOLUTION HINGE SIDE

    Module jointed door, hinge side. Steel frame with glass or solid door.

    Find all information about TP Fire on our download page

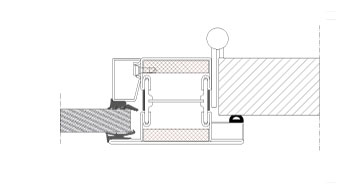

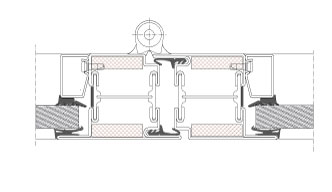

    Horizontal section. TP Fire. Steel-framed glass door. EI60.
    Horizontal section. TP Fire. Steel-framed glass door. EI60.
    Horizontal section. TP Fire. Steel-framed glass door. EI30.
    Horizontal section. TP Fire. Steel-framed glass door. EI30.

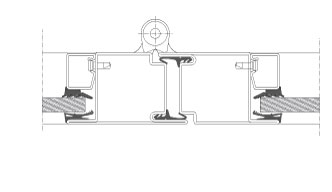

    Horizontal section. TP Fire. Steel-framed glass door. Unclass. - EW60.
    Horizontal section. TP Fire. Steel-framed glass door. Unclass. - EW60.

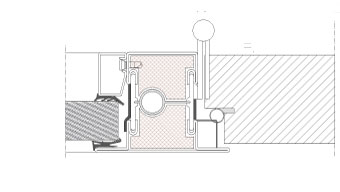

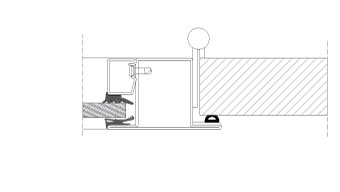

    Horizontal section. TP Fire. Steel frame with solid door. EI60.
    Horizontal section. TP Fire. Steel frame with solid door. EI60.
    Horizontal section. TP Fire. Steel frame with solid door. EI30.
    Horizontal section. TP Fire. Steel frame with solid door. EI30.
    Horizontal section. TP Fire. Steel frame with solid door. Unclass. - EW60.
    Horizontal section. TP Fire. Steel frame with solid door. Unclass. - EW60.

    V8 - T JOINT

    Contact Triplan to learn more about which T joint solutions there are in the TP Fire S system.

    Find all information about TP Fire on our download page

















    To the top

    To the top

    TP FIRE S

    Click on the numbers to see the details and the different versions.

    L1
    L2
    L3
    L4
    L4
    L5

    Vertical section

    L1: Top solution

    L2: Bottom solution

    (L3: Module joint)

    L4: Door solution

    L5: Door solution with full-height door

    V1
    V2
    V3
    V4
    V5
    V6
    V7
    V8
    V4
    V4

    Horizontal section

    V1: Door solution against wall

    V2: Door solution striking-plate side

    V3: Module joint

    V4: Corner solution

    V5: Joint against the wall

    V6: Door solution double door

    V7: Door solution hinge side

    V8: T joint

    V9: End joint
