L1 - TOP SOLUTIONS
In the Flexica system, jointing to the ceiling is done with or without a recess. Glass solution can be carried out using single glass.
Top solution Flexica. 100 mm solid wall. Without recess. With top trim 50 mm. Or with plaster to the ceiling.
Top solution Flexica using a floor runner. 100 mm solid wall. Without recess. Top trim 50 mm.
Top solution Flexica. 100 mm solid wall. 15 mm recess and 15 mm U top trim.
Top solution Flexica. 100 mm solid wall. 15-25 recess. With double-lap H section.
Top solution Flexica. 100 mm double glass wall. Without recess, 50 mm top trims or 15 mm U top trim.
Top solution Flexica. 100 mm double glass wall. 15-30 mm recess and 15 mm U top trim.
Top solution Flexica. 100 mm double glass wall. 16-26 mm recess and single-lap H section.
Top solution Flexica. 100 mm double glass wall. 15 mm recess and 15 mm U top trim.
L2 - BOTTOM SOLUTIONS
In the Flexica system, jointing to the floor is done with or without a recess. Glass solution can be carried out using single glass.
Bottom solution Flexica. 100 mm solid wall. Without recess. 20 mm joint section. Caps towards floor.
Bottom solution Flexica. 100 mm solid wall. 50 or 100 mm recess.
Bottom solution Flexica. 125 mm solid wall in a double layer of plasterboard. 50 mm recess.
Bottom solution Flexica. 100 mm double glass wall. 50 or 100 mm recess.
L3 - HORIZONTAL MODULE JOINTING
In the Flexica system, panel jointing can be carried out with solid partitions, glass or a combination solution. A glass solution can be carried out using single glass.
Horizontal module joint Flexica. Joint in 100 mm solid wall between two plasterboard modules.
Horizontal module joint Flexica. Joint in 100 mm wall between plasterboard and double glass module.
Horizontal module joint Flexica. Joint in 100 mm wall between double glass and plasterboard module.
Horizontal module joint Flexica. Joint in 100 mm wall between double glass modules.
L4 - DOOR SOLUTION WITH OVERPANEL
In the Flexica system, door joints can be carried out with solid overpanels or glazed overpanels. Wood, steel or steel-covered wooden frame. A glass solution can be carried out using single glass.
Vertical section Flexica. 100 mm wall. Joint between plasterboard module and wooden door frame.
Vertical section Flexica. 100 mm wall. Joint between double glass module and wooden door frame.
Vertical section Flexica. 100 mm wall. Joint between double glass module and steel frame for glass door.
Vertical section Flexica. 100 mm wall. Joint betwee plasterboard module and steel frame for glass door.
L5 - DOOR SOLUTION FOR FULL-HEIGHT DOOR
Full-height glass or solid door with wood, steel or steel-covered wooden frame.
Vertical section Flexica. 100 mm wall. Steel frame for full-height solid door. 15-30 mm recess with double-lap H section.
Vertical section Flexica. 100 mm wall. Steel frame. 15 mm U top trim.
Vertical section Flexica. 100 mm wall. Steel-covered wooden frame with solid door.
Vertical section Flexica. 100 mm wall. Wooden frame with solid door.
V1 - DOOR SOLUTION AGAINST WALL
Contact Triplan at +45 43 53 99 99 and learn more about the possibilities for door jointing to walls.
V2 - DOOR SOLUTION WITH STRIKING-PLATE SIDE
Contact Triplan at +45 43 53 99 99 and learn more about jointing to the striking-plate side.
V3 - MODULE JOINTING
In the Flexica system, module jointing can be carried out with solid partitions, glass or a combination solution. A glass solution can be carried out using single glass.
Horizontal section Flexica. Module joint in 100 mm wall between two plasterboard modules.
Horizontal section Flexica. Module joint in 125 mm wall between two plasterboard modules.
Horizontal section Flexica. Module joint in 100 mm wall between plasterboard and double glass module.
Horizontal section Flexica. Module joint in 125 mm wall between plasterboard and double glass module.
Horizontal section Flexica. Module joint in 100 mm wall between two double glass modules.
Horizontal section Flexica. Module joint in 125 mm wall between two double glass modules.
V4 - CORNER SOLUTION
In the Flexica system, corner solutions can be carried out with solid partitions, glass or a combination solution. A glass solution can be carried out using single glass. Corner joints can be carried out as 30°, 45° and 90°.

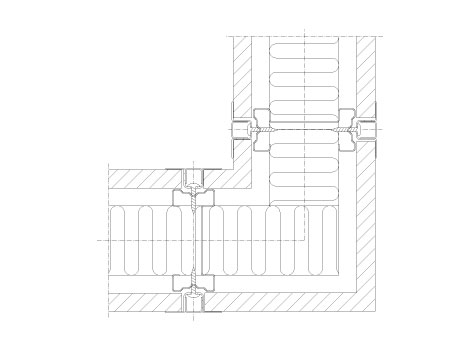

Horizontal section Flexica. 90° corner joint with F section in 100 mm wall between two plasterboard modules.

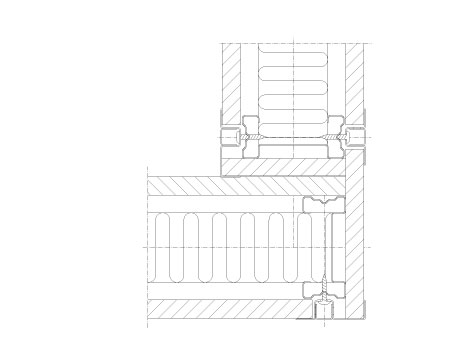

Horizontal section Flexica. 90° steel-covered corner joint in 100 mm wall between two plasterboard modules.

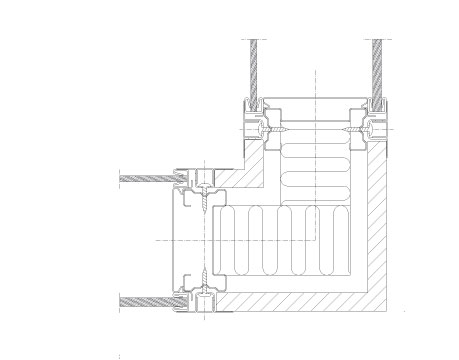

Horizontal section Flexica. 90° corner joint with F section in 100 mm wall between two double glass modules.

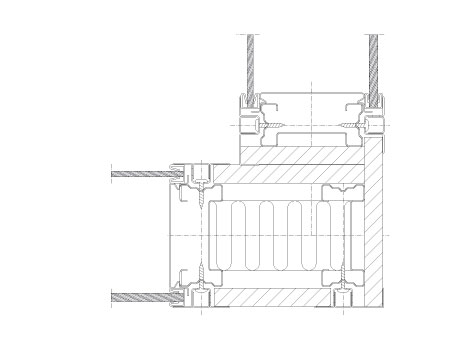

Horizontal section Flexica. 90° steel-covered corner joint in 100 mm wall between two double glass modules.

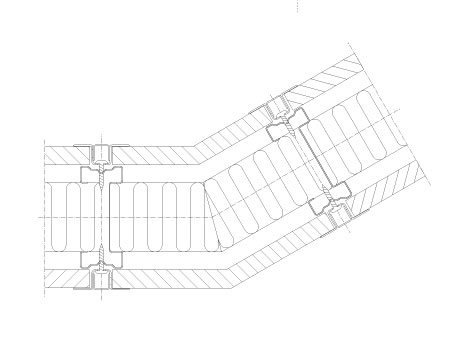

Horizontal section Flexica. 30° steel-covered corner joint in 100 mm wall between two plasterboard modules.

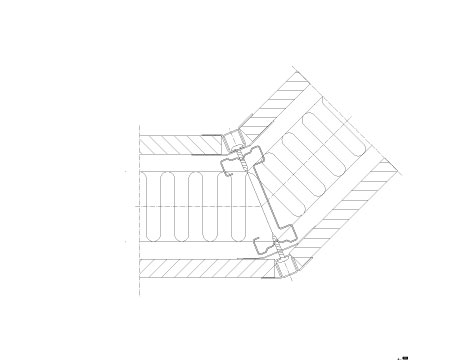

Horizontal section Flexica. 45° corner joint with omega section between two plasterboard modules.

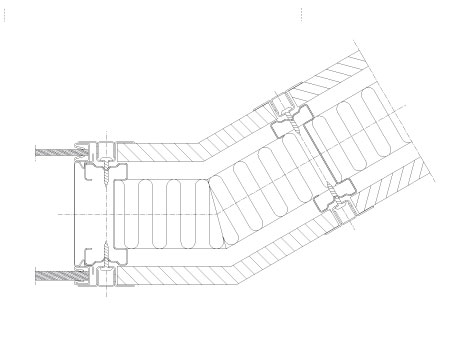

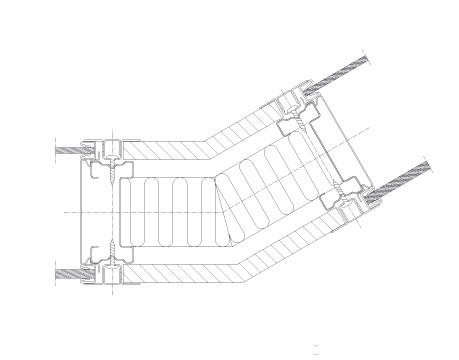

Horizontal section Flexica. 30° steel-covered corner joint in 100 mm wall between plasterboard and double glass module.
Horizontal section Flexica. 30° steel-covered corner joint in 100 mm wall between two double glass modules.
V5 - JOINTING TO WALL
Jointing to wall with 100 or 125 mm plaster or glass wall.
Flexica. Tilslutning mod væg. 100 mm gipsvæg med F-profil.
Flexica. Tilslutning mod væg. 125 mm gipsvæg med F-profil.
Flexica. Tilslutning mod væg. 100 mm gipsvæg med stolpe og F-profil.
Flexica. Tilslutning mod væg. 100 mm gipsvæg med træliste og tilslutningsbeslag.
Flexica. Tilslutning mod væg. 100 mm gipsvæg med E-profil.
Flexica. Tilslutning mod væg. 100 mm dobbelt glasvæg med stolpe og F-profil.
Flexica. Tilslutning mod væg. 100 mm dobbelt glasvæg med træliste og tilslutningsbeslag.
Flexica. Tilslutning mod væg. 100 mm dobbelt glasvæg med bundrem og F-profil.
V6 - DOOR SOLUTION DOUBLE DOOR
Contact Triplan at +45 43 53 99 99 and learn more about door solutions with double doors.
V7 - DOOR SOLUTION HINGE SIDE
Module jointed door, hinge side. Wood, steel or steel-covered wooden frame. Glass or solid door.
Vandret snit Flexica. Horisontal samling i 100 mm væg mellem gipsmodul og trækarm med massivdør.
Vandret snit Flexica. Horisontal samling i 125 mm væg mellem gipsmodul og trækarm med massivdør.

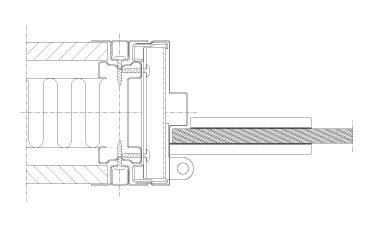

Vandret snit Flexica. Horisontal samling i 100 mm væg mellem gipsmodul og stålkarm med massivdør.
Vandret snit Flexica. Horisontal samling i 125 mm væg mellem dobbelt glasmodul og trækarm med massivdør.
Vandret snit Flexica. Horisontal samling i 100 mm væg mellem dobbelt glasmodul og trækarm med massivdør.
Vandret snit Flexica. Horisontal samling i 100 mm væg mellem dobbelt glasmodul og stålkarm med massivdør.
Vandret snit Flexica. Horisontal samling i 100 mm væg mellem gipsmodul og stålkarm med glasdør.

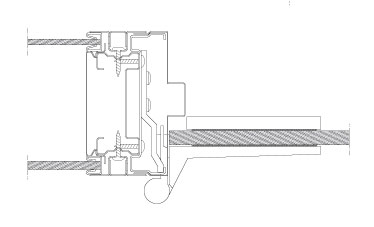

Vandret snit Flexica. Horisontal samling i 100 mm væg mellem dobbelt glasmodul og stålkarm med glasdør.
V8 - T JOINT
In the Flexica system, T joints can be carried out with solid partitions, glass or a combination solution. A glass solution can be carried out using single glass.

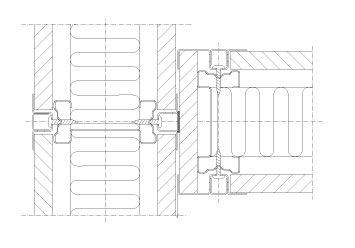

Vandret T-samling Flexica. Samling i 2 x 100 mm væg mellem 2 gipsmoduler. Med F-profil.

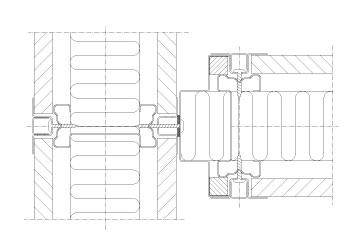

Vandret T-samling Flexica. Samling i 2 x 100 mm væg mellem 2 gipsmoduler. Med 15x20x50 tilslutningsprofil.

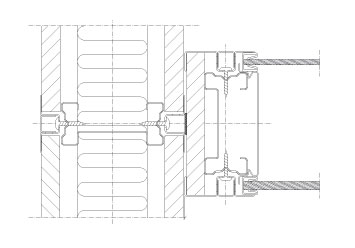

Vandret T-samling Flexica. Samling i 2 x 100 mm væg mellem gips- og glasmodul. Med F-profil.

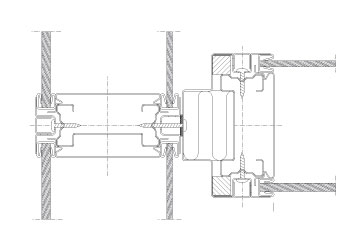

Vandret T-samling Flexica. Samling i 2 x 100 mm væg mellem 2 glasmoduler. Med 15x20x50 tilslutningsprofil.
V9 - END JOINT
In the Flexica system, end solutions can be carried out for solid partitions, glass or with a combination solution with cover caps of steel or a blind door frame.
A glass solution can be carried out using single glass.
Vandret snit Flexica. Vægafslutning i 100 mm gipsvæg. Afslutning med F-profil.
Vandret snit Flexica. Vægafslutning i 100 mm gipsvæg. Afslutning med dækkappe i stål.
Vandret snit Flexica. Vægafslutning i 100 mm gipsvæg. Afslutning med blind dørkarm.
Vandret snit Flexica. Vægafslutning i 100 mm dobbelt glasvæg. Afslutning med F-profil.
Vandret snit Flexica. Vægafslutning i 100 mm dobbelt glasvæg. Afslutning med dækkappe i stål.
Vandret snit Flexica. Vægafslutning i 100 mm dobbelt glasvæg. Afslutning med blind dørkarm.
