TP Lite Twin - double full glass wall

TP Lite Twin double full glass wall

TP Lite Twin - simple in the double way

TP Lite Twin is an elegant double full glass wall with slim specially produced aluminium sections on the top, sides and bottom. The glass is fixed in a runner system using black dry silicone tape that can be mounted without the use of special tools. The wall sections have a depth of 100 mm.

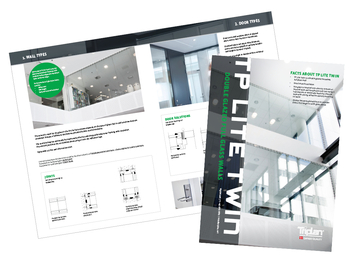

Look at the product brochure here:

Product brochure
TP Lite Twin Product brochure
TP Lite Twin double glass wall

Triplan has a full glass solution that accommodates the market’s demand for design, mounting and prices while complying with sound ratings up to 42 dB.

See more great photos of TP Lite Twin double full glass wall


Glass partitions

The glass partitions are delivered as toughened and/or laminated glass with thicknesses up to 15 mm, depending on the sound rating wanted. The standard for joints in glass walls is to use 2 mm glass tape that is adhesive on both sides. Alternatively, 5 mm wet sealed joints may be used.


Look at the various TP Lite Twin wall types


Sections and door frames

The sections are 100 mm aluminium sections with two-piece or three-piece bottom runners and, as the standard, are delivered as powder-lacquered in RAL 9010 or anodised, but can also be delivered in other colours. Door frames have a frame width of 50 mm.


See detail drawings


Module sizes

Doors are 40 mm solid wooden doors or 10 mm toughened glass doors with aluminium door frames. The standard size of doors is M9 x 21. Doors can also be delivered as full height and other module sizes and with drop seal.


See all the TP Lite Twin drawings.

Find more information on our download page

Double full glass wall TP Lite Twin
