L1 - TOP SOLUTIONS
In the TP Lite Twin system, the glass is built in in a simple aluminium runner system placed on the top, the bottom and the sides. The section width is 100 mm.
Glass thicknesses can be varied as wanted (max. 12,76 mm).
Find all information about TP Lite Twin on our download page

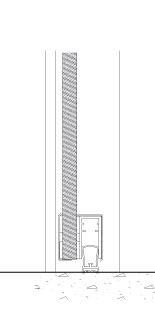

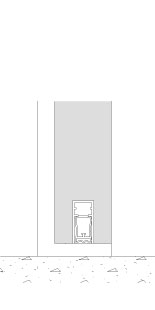

L2 - BOTTOM SOLUTIONS
Two-piece or three-piece bottom solution in aluminium. The section width is 100 mm..
Glass thicknesses can be varied as wanted (max. 12,76 mm).
Find all information about TP Lite Twin on our download page






L3 - VANDRET MODULSAMLING
TP Lite Twin-systemet kan leveres med overglas over døre.
Glasfelter er i fuld højde.
Find all information about TP Lite Twin on our download page

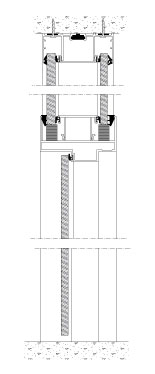

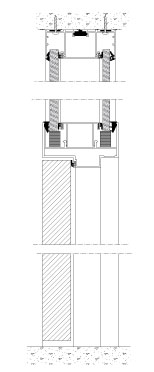

L4 - DOOR SOLUTION WITH GLAZED OVERPANEL
Glass or solid door with T frame with glazed overpanel. Doors are available with drop seal.
Glastykkelser kan varieres efter ønske (max. 12,76 mm).
Find all information about TP Lite Twin on our download page

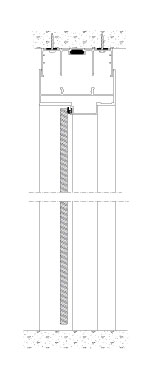

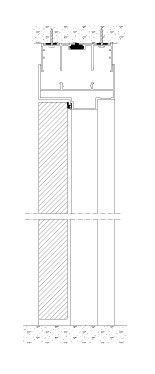

L5 - DOOR SOLUTION WITH FULL-HEIGHT DOOR
Full-height glass or solid door with aluminium door frame. Solid door can be delivered with wooden overpanel.
Glass thicknesses can be varied as wanted (max. 12,76 mm).
Find all information about TP Lite Twin on our download page

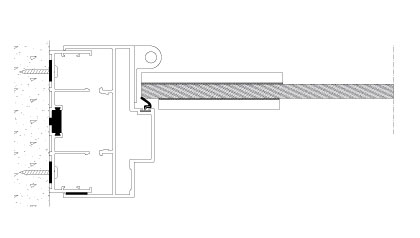

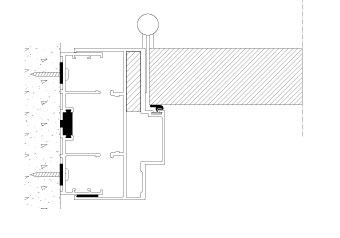

V1 - DOOR SOLUTION AGAINST WALL
Glass or solid door with aluminium door frame against wall.
Find all information about TP Lite Twin on our download page

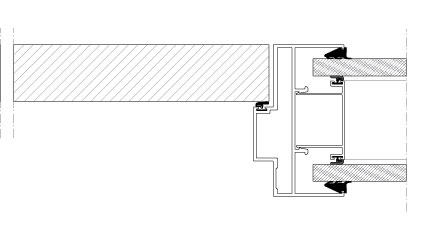

V2 - DOOR SOLUTION WITH STRIKING-PLATE SIDE
Door frame in aluminium, width 50 mm. Horizontal section. Glass or solid door.
Find all information about TP Lite Twin on our download page




V3 - MODULE JOINTING
Glass fields are jointed with 2 mm dry silicone tape. Glass thicknesses can be varied as wanted (max. 12,76 mm).
Find all information about TP Lite Twin on our download page


V4 - CORNER SOLUTION
Contact Triplan to learn more about which corner solutions there are in the TP Lite Twin system.
Find all information about TP Lite Twin on our download page
V5 - JOINTING TO WALL
Joint with side section with a width of 30 or 40 mm.
The joint can also be made with 2 mm dry silicone tape.
Find all information about TP Lite Twin on our download page


V6 - DOOR SOLUTION WITH DOUBLE DOOR
Contact Triplan to learn more about which double door solutions there are in the TP Lite Twin system.
Find all information about TP Lite Twin on our download page

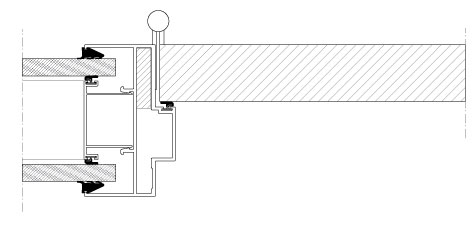

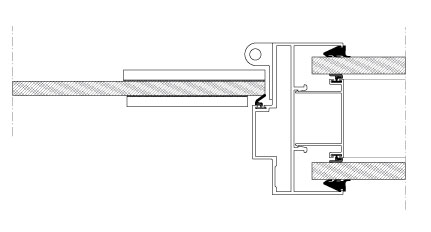

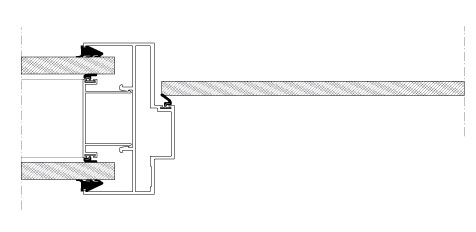

V7 - DOOR SOLUTION HINGE SIDE
Module joint door, hinge side. Aluminium door frame section width 50 mm. Glass or solid door.
Find all information about TP Lite Twin on our download page




V8 - T JOINT
In the TP Lite Twin system, the glass is built in in a simple runner system placed on the top, the bottom and the side. For T joints, the joints can be made with 2 mm dry silicone tape or 5 mm wet sealant.
Contact Triplan to learn more about which T joint solutions there are in the TP Lite Twin system.
Find all information about TP Lite Twin on our download page
Read more about TP Lite Twin full glass walls
See all the TP Lite Twin drawings.
Find more information on our download page
TP LITE TWIN
Click on the numbers to see the details and the different versions.
Vertical section
L1: Top solution
L2: Bottom solution
(L3: Module joint)
L4: Door solution
L5: Dørløsning full-height door
Horizontal section
V1: Door solution against wall
V2: Door solution striking-plate side
V3: Modue joint
V4: Corner solution
V5: Joint against the wall
V6: Door solution double door
V7: Door solution hinge side
V8: T joint
