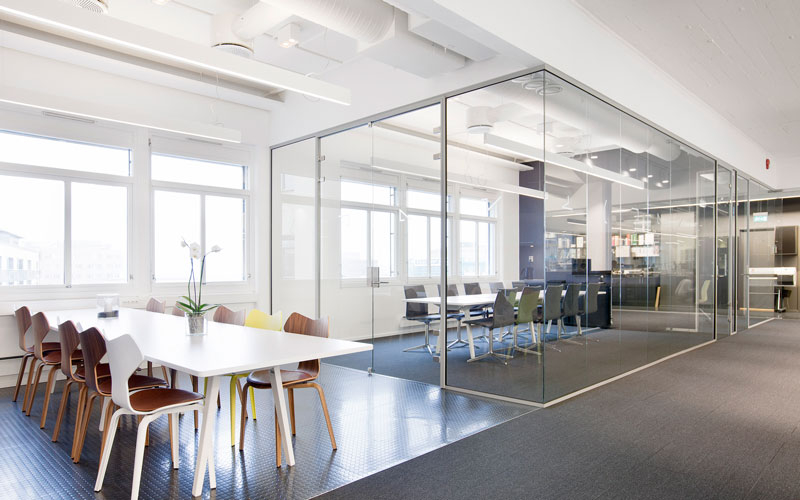

TRIPLAN LITE® | 34 - 43 dB. Designkategori ALU med profiler og karm i naturelokseret aluminium. GD 01 fuldhøjde dobbeltdør. Kontorindretning, Momentum, Norge. Design category ALU with sections and door frame in anodised aluminium. GD 01 glazed double door. Office, Momentum, Norway.

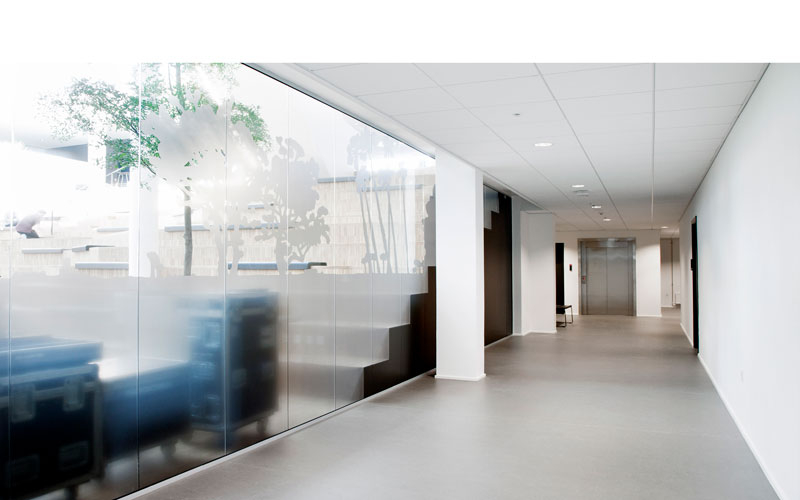

TRIPLAN LITE® | 34 - 43 dB. Klassisk glasvæg med GD 02 2-lags glasdør. Designkategori ALU med naturelokserede profiler. Triplan showroom. Classic glazed wall with a GD 02 2-layer glass door. Design category ALU with sections and door frame in anodised aluminium. Triplan showroom.

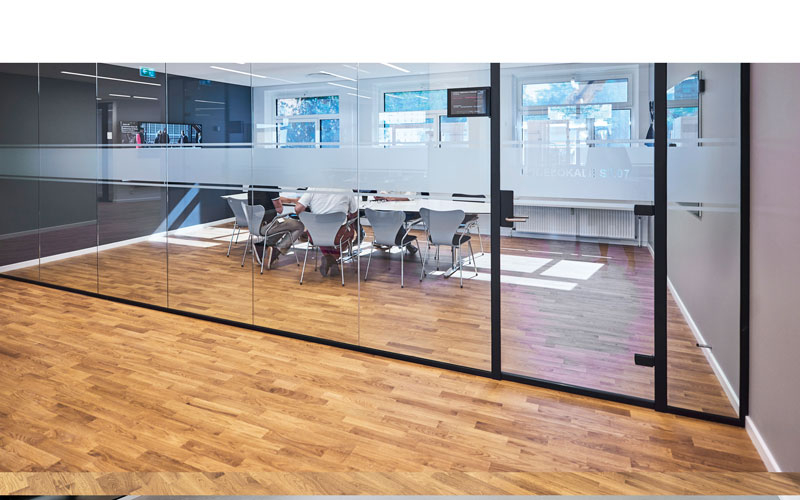

TRIPLAN LITE® | 34 - 43 dB. Klassisk glasvæg med smalle tapede samlinger og GD 01 glasdør. Designkategori ALU med sorte profiler. Kontorindretning Movia, Valby. Arkitekter: Krydsrum Arkitekter. Classic glazed wall with almost invisible taped junctions and a GD 01 glass door. Design category ALU with sections in black aluminium. Movia office, Copenhagen. Architect: Krydsrum Architects.
TRIPLAN LITE® | 34 - 43 dB. Klassisk glasvæg med smalle tapede samlinger. Designkategori ALU med hvide profiler. Erhvervsakademiet i Århus. Arkitekt: Sahl Arkitekter A/S. Classic glazed wall with almost invisible taped junctions. Design category ALU with sections in white aluminium. The Business Academy in Aarhus. Architect: Sahl Architects A/S.

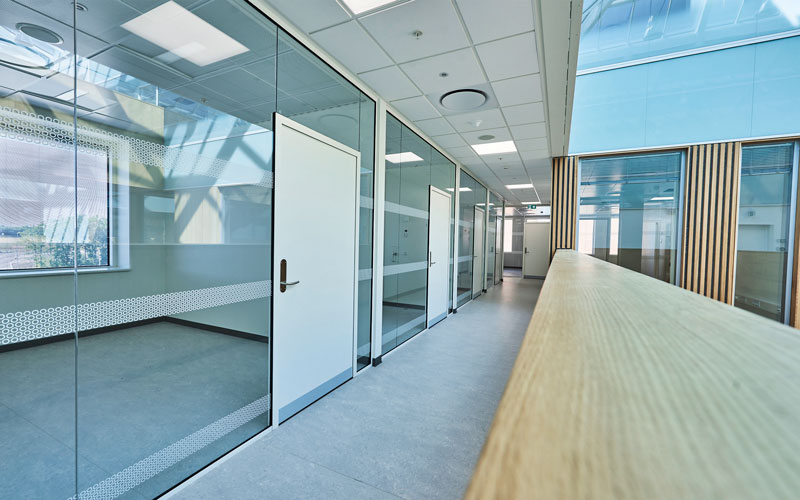

TRIPLAN LITE® | 34 - 43 dB. Klassisk glasvæg med smalle tapede samlinger og trædøre. Designkategori ALU med hvide profiler. Dansk Center for Partikelterapi. Link Arkitektur. Classic glazed wall with almost invisible taped junctions and wooden doors. Design category ALU with sections in white aluminium. Danish centre of particle therapy. Link Architekchure.

TRIPLAN LITE® | 34 - 43 dB | ALU

The TRIPLAN LITE® | 34 - 43 dB | ALU glazed wall system has aluminium sections with two-piece bottom runners and are delivered as standard powder-lacquered in white RAL 9010, black RAL 9005 or anodised. Sections and door frames can be delivered in different colours, optionally stainless steel. A classic glazed wall that is easy to mount.

A classic glass wall with slim sections

The TRIPLAN LITE® | 34 - 43 dB | ALU glazed wall ensures transparency, openness and flexibility in the layout providing an elegant and simple solution. The glass partitions are delivered with a single layer of toughened and/or laminated glass with thicknesses from 10 to 21 mm, depending on sound rating wanted.

Sections and door frames

The sections are always available in heights of 30, 40 or 60 mm. Section depth depends on the glass thickness. Doors are 40 mm solid wooden doors, 2-layer glass doors or 10 mm toughened glass doors with wooden T frames. Standard size of doors is M9 x 21. They can also be delivered in full height and other module sizes. Triplan can also provide solutions with overpanels, sliding doors or pivot operated doors.

Get information about Triplan doors here

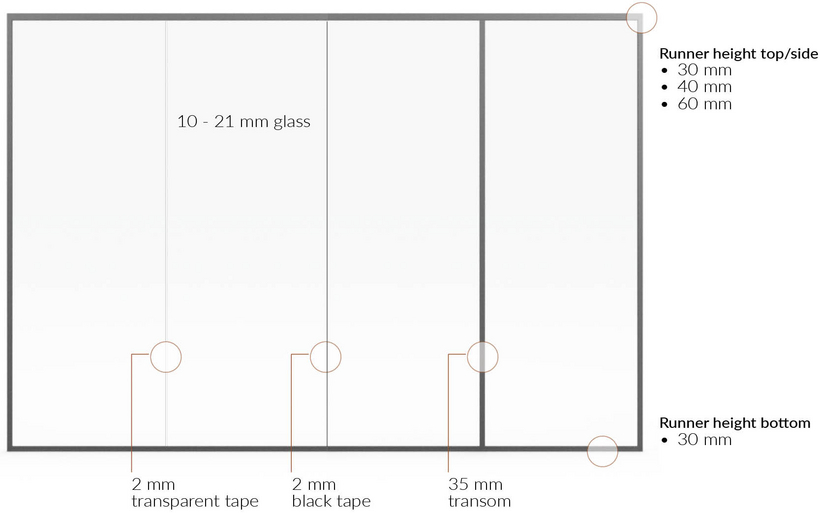

The standard for vertical joints in glass walls or glass corners is :

• The glasses are joined using a 2 mm transparent tape that is adhesive on both sides. An almost invisible solution.

• The glasses are joined using a 2 mm black tape. An elegant solution.

• Narrow retrofitted transoms in the same design as the other TRIPLAN LITE®-solutions.

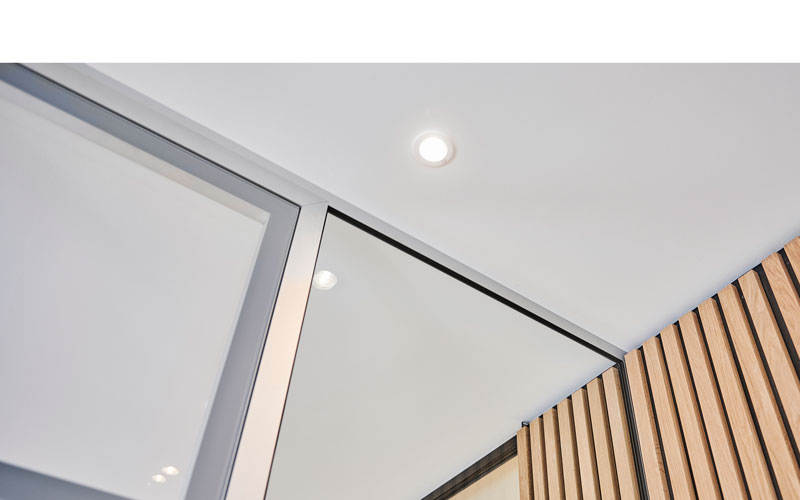

TRIPLAN LITE glazed wall. Transparent glass junction.

TRIPLAN LITE glazed wall. Glass junction black tape

Wall type	Sound reduction glass	Glass jointing	Wall thickness	Fire classification
TRIPLAN LITE® \| 34 - 43 dB \| ALU	34 - 40 dB	Tape	25 mm	-
TRIPLAN LITE® \| 34 - 43 dB \| ALU	38 - 42 dB	Tape	30 mm	-
TRIPLAN LITE® \| 34 - 43 dB \| ALU	39 - 43 dB	Tape	35 mm	-
TRIPLAN LITE® \| 34 - 43 dB \| ALU	34 - 40 dB	35 mm transom	25 mm	-
TRIPLAN LITE® \| 34 - 43 dB \| ALU	38 - 42 dB	35 mm transom	30 mm	-
TRIPLAN LITE® \| 34 - 43 dB \| ALU	39 - 43 dB	35 mm transom	35 mm	-
