Glazed walls with sound reduction Rw 34 - 43 dB
Design category NEW YORK. TRIPLAN LITE glazed walls

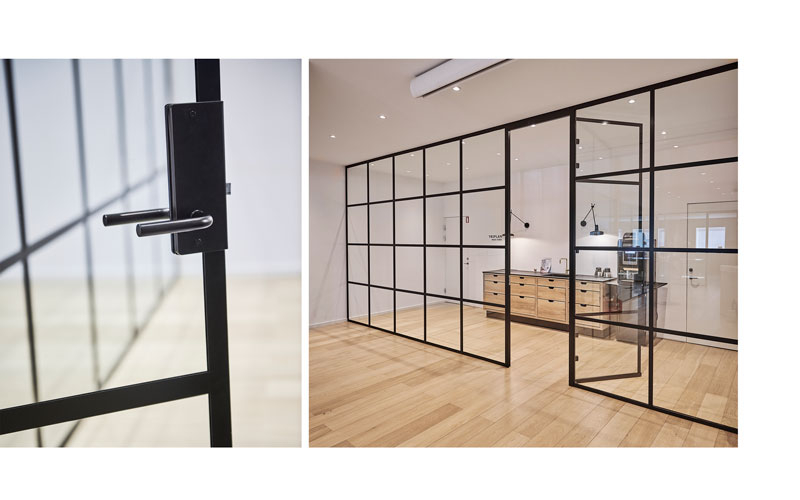

  • Triplan lite new york glasvæg 03

    TRIPLAN LITE® | 34 - 43 dB. Designkategori NEW YORK med profiler, karm og sprosser i sort aluminium. GD 01 glasdør med låsekasse i sort. Triplan showroom. Design category NEW YORK with sections, door frame and transoms in black aluminium. GD 01 glass door with a black lock case. Triplan showroom.

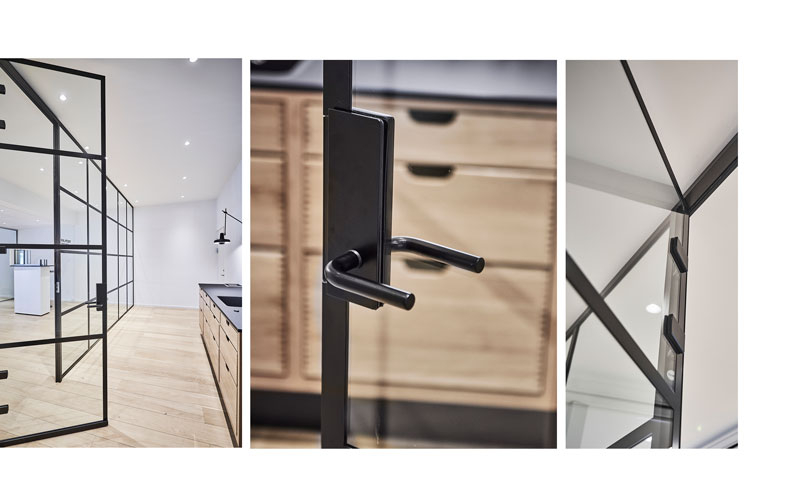

  • Triplan lite new york glasvæg 06

    TRIPLAN LITE® | 34 - 43 dB. Designkategori NEW YORK med profiler, karm og sprosser i sort aluminium. GD 01 glasdør med låsekasse i sort. Triplan showroom. Design category NEW YORK with sections, door frame and transoms in black aluminium. GD 01 glass door with a black lock case. Triplan showroom.

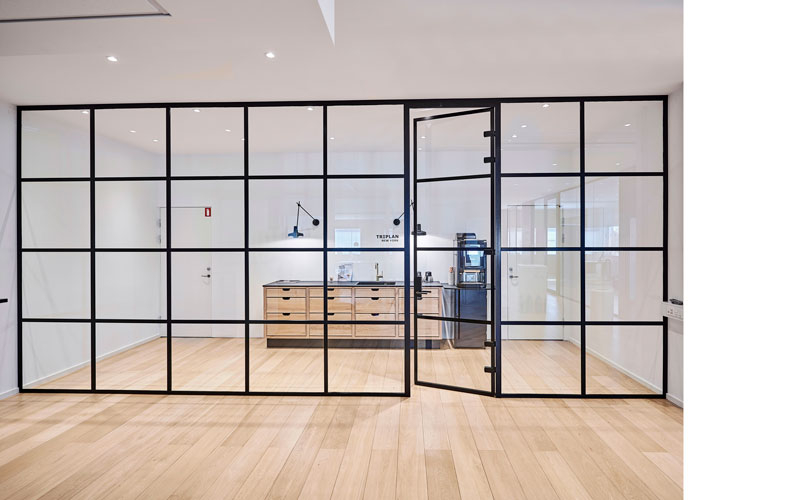

  • Triplan lite new york glasvæg 01

    TRIPLAN LITE® | 34 - 43 dB. Designkategori NEW YORK med profiler, karm og sprosser i sort aluminium. GD 01 glasdør med låsekasse i sort. Triplan showroom. Design category NEW YORK with sections, door frame and transoms in black aluminium. GD 01 glass door with a black lock case. Triplan showroom.

TRIPLAN LITE®  |  34 - 43 dB | NEW YORK

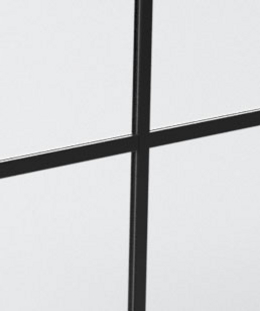

TRIPLAN LITE® | 34 - 43 dB | NEW YORK is a further development of the classic TRIPLAN LITE® | ALU, a glazed wall system in a simple alu-design with many abilities. TRIPLAN LITE® | 34 - 43 dB | NEW YORK is equipped with vertical and horizontal transoms that are taped onto the glass thus transforming it into the popular New York look.





Classic glazed wall with an industrial touch

With a TRIPLAN LITE® | 34 - 43 dB | NEW YORK glazed wall you maintain transparency, openness and flexibility in the design using an aesthetical and simple solution. An elegant solution with an industrial touch that is easy to install.  The glass partitions are delivered with a single layer of toughened and/or laminated glass with thicknesses from 10 to 21 mm, depending on the sound rating wanted.





Sections and door frames

The sections are available in heights of 30, 40 or 60 mm. Section depth depends on the glass thickness. The transom width is 35 mm. Doors are 10 mm toughened glass doors with slim T frames, alternatively 40 mm solid wooden doors or 2-layer glass doors. Standard size of doors is M9 x 21. They can also be delivered in full height and other module sizes. Triplan can also provide solutions with overpanels, sliding doors or pivot operated doors.

Get more information about Triplan doors here





The standard for vertical joints in glass walls or glass corners is :

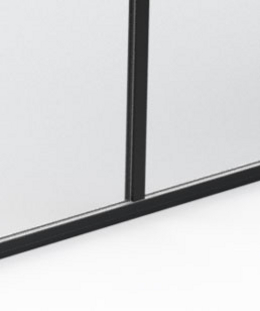

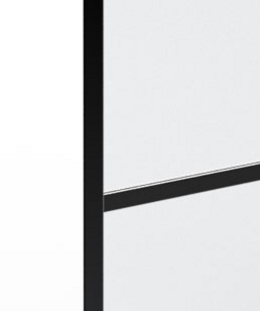

•   Slim horizontal and vertical transoms transoms in the same design as the other TRIPLAN LITE®-solutions.

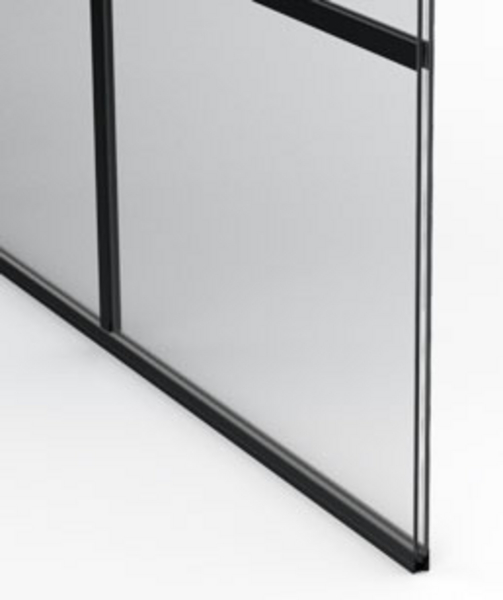

New York glazed wall.
New York style glazed wall
New York glazed wall. TRIPLAN LITE glass wall
Wall type        Sound reduction glass          Glass jointing          Wall thickness        Fire classification
TRIPLAN LITE®  |  34 - 43 dB  |  NEW YORK34 - 40 dB35 mm transom25 mm-
TRIPLAN LITE®  |  34 - 43 dB  |  NEW YORK38 - 42 dB35 mm transom30 mm-
TRIPLAN LITE®  |  34 - 43 dB  |  NEW YORK39 - 43 dB35 mm transom35 mm-

DETAIL DRAWINGS

TRIPLAN LITE®  |  34 - 43 dB  |  NEW YORK-detail drawings. Please contact Triplan.

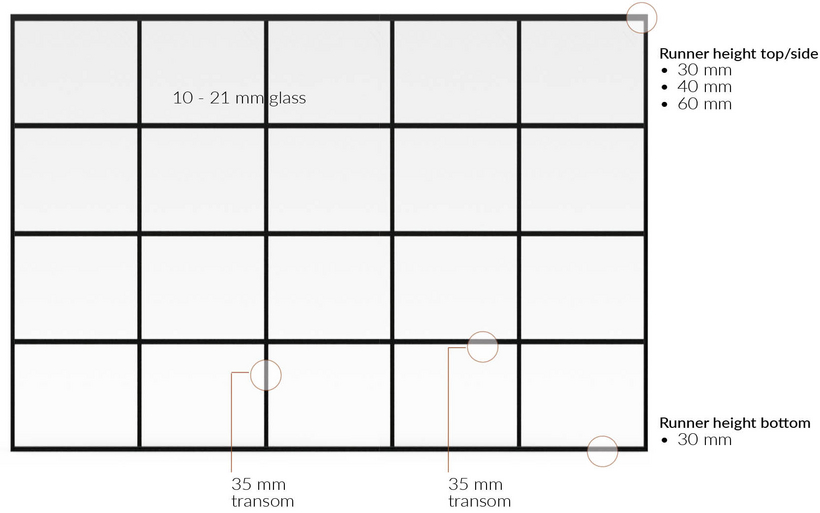

TRIPLAN LITE | 34 - 43 dB glazed wall. NEW YORK. Elevated drawing.

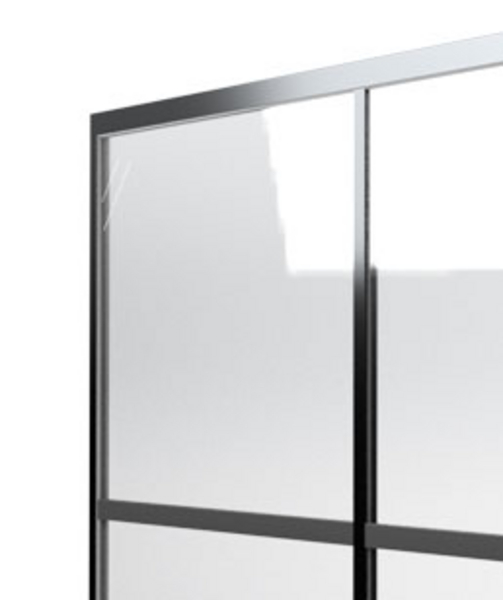

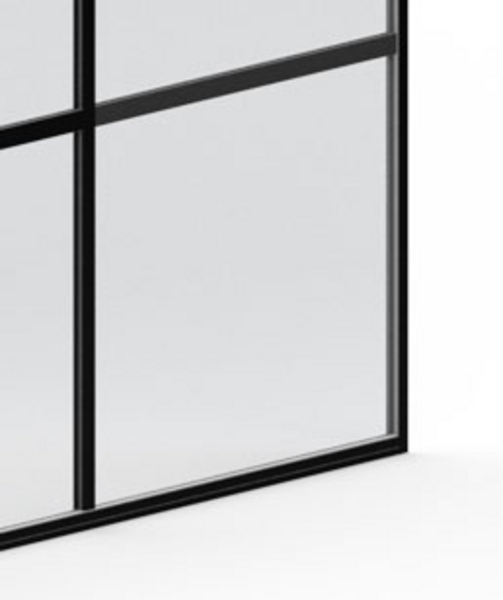

New York glazed wall. Corner detail
New York glazed wall.
New York glazed wall
