    HOME > PRODUCTS > GLASS WALLS > TRIPLAN LITE > 34 - 43 dB





    YOUR CHOISE

    Glazed walls with sound reduction Rw 34 - 43 dB
    Design category wood.

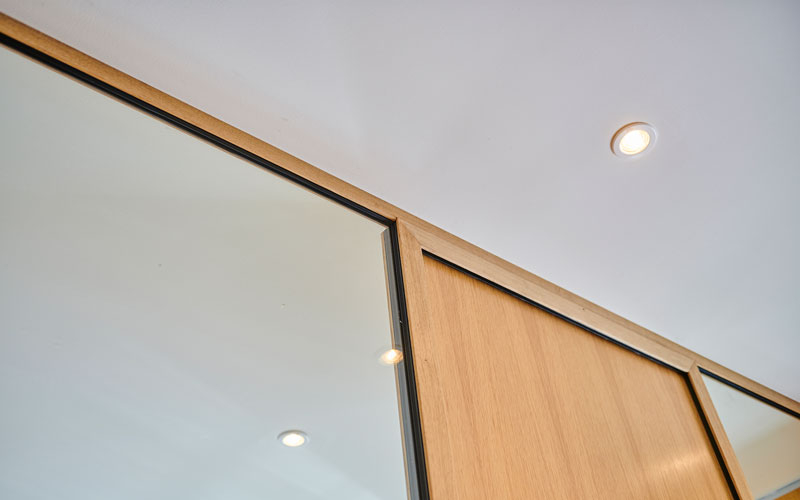

    • Triplan lite wood glasvæg 02

      TRIPLAN LITE® | 34 - 43 dB. Designkategori WOOD med profiler og karm i egetræ. Triplan shoowroom. Design category WOOD with sections and door frame in oak. Triplan shoowroom.

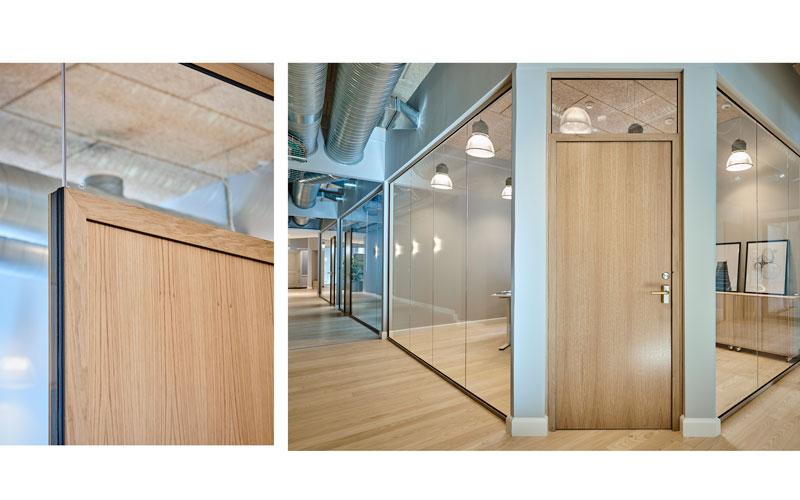

    • Triplan lite 34 43 wood 05

      TRIPLAN LITE® | 34 - 43 dB. Glasvæg med smalle tapede samlinger og trædør. Designkategori WOOD i egetræ. Ordnung kontorhotel i Bredgade. Arkitekt: Josephine Malling / define4u Glazed walls and wooden doors. Design category WOOD. Ordnung office hotel, Copenhagen. Architect: Josephine Malling / define4u

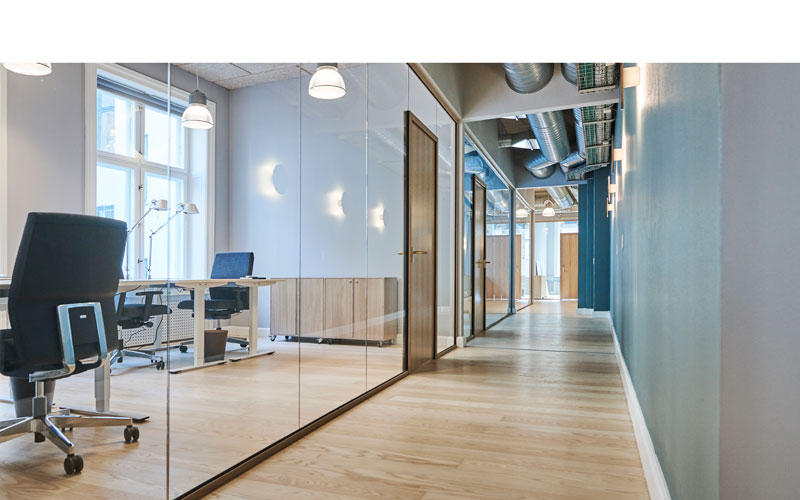

    • Triplan lite 34 43 wood 01

      TRIPLAN LITE® | 34 - 43 dB. Glasvæg med smalle tapede samlinger og trædør. Designkategori WOOD i egetræ. Ordnung kontorhotel i Bredgade. Arkitekt: Josephine Malling / define4u Glazed walls and wooden doors. Design category WOOD. Ordnung office hotel, Copenhagen. Architect: Josephine Malling / define4u

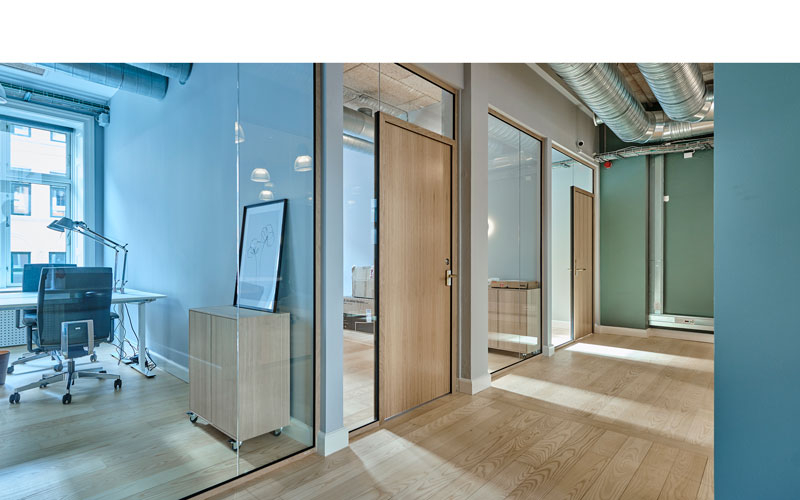

    • Triplan lite 34 43 wood 03

      TRIPLAN LITE® | 34 - 43 dB. Glasvæg med smalle tapede samlinger og trædør. Designkategori WOOD i egetræ. Ordnung kontorhotel i Bredgade. Arkitekt: Josephine Malling / define4u Glazed walls and wooden doors. Design category WOOD. Ordnung office hotel, Copenhagen. Architect: Josephine Malling / define4u

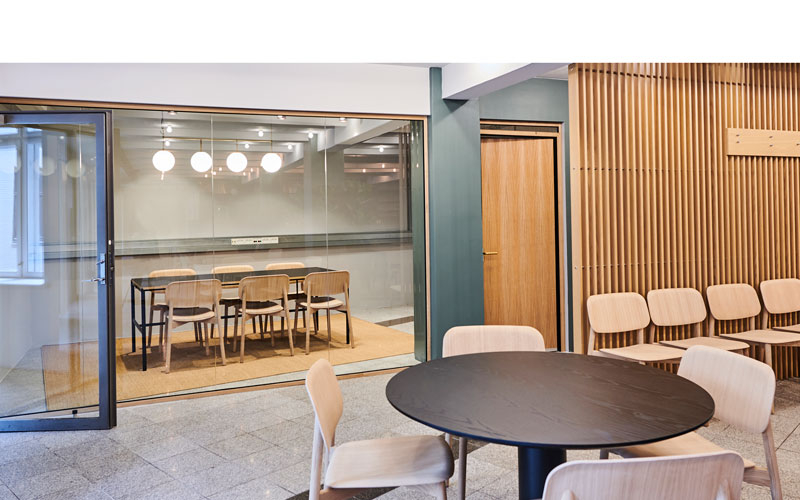

    • Triplan lite 34 43 wood 06

      TRIPLAN LITE® | 34 - 43 dB. Glasvæg med smalle tapede samlinger og trædør. Designkategori WOOD i egetræ. Ordnung kontorhotel i Bredgade. Arkitekt: Josephine Malling / define4u Glazed walls and wooden doors. Design category WOOD. Ordnung office hotel, Copenhagen. Architect: Josephine Malling / define4u

    TRIPLAN LITE®  |  34 - 43 dB |  WOOD

    TRIPLAN LITE® | WOOD glazed wall system has runners, transoms and a door frame with a surface in solid, sustainable FSC-certified oak and is also available in other types of wood. An elegant solution with an exclusive touch that is easy to install and easy to move and reuse.



    Classic glazed wall with a warm and beautiful finish

    A TRIPLAN LITE® | WOOD glazed wall ensures transparency, openness and flexibility in the layout providing an elegant and simple solution. The glass partitions are delivered with a single layer of toughened and/or laminated glass with thicknesses from 10 to 21 mm, depending on the sound rating wanted.





    Sections and door frames

    The sections are available in heights of 30, 40 or 60 mm. Section depth depends on the glass thickness. Doors are 40 mm solid wooden doors, 2-layer glass doors or 10 mm toughened glass doors with wooden T frames. Standard size of doors is M9 x 21. They can also be delivered in full height and other module sizes. Triplan can also provide solutions with overpanels, sliding doors or pivot operated doors.





    Get information about Triplan doors here





    The standard for vertical joints in glass walls or glass corners is :

    •   The glasses are joined using a 2 mm transparent tape that is adhesive on both sides. An almost invisible solution.

    •   The glasses are joined using a 2 mm black tape. An elegant solution.

    •   Narrow retrofitted transoms in the same design as the other TRIPLAN LITE®-solutions.

    Transparent glass junction

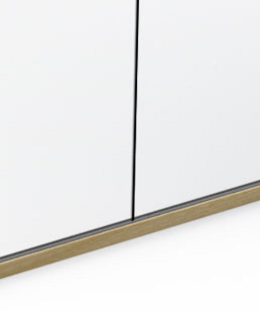

    Glass junction with black tape. TRIPLAN LITE® | WOOD glazed wall
    Glass junction with wooden transom.
    Wall type        Sound reduction glass          Glass jointing          Wall thickness        Fire classification
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD34 - 40 dBTape35 mm-
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD38 - 42 dBTape40 mm-
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD39 - 43 dBTape45 mm-
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD34 - 40 dB35 mm transom35 mm-
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD38 - 42 dB35 mm transom40 mm-
    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD39 - 43 dB35 mm transom45 mm-

    DETAIL DRAWINGS

    TRIPLAN LITE®  |  34 - 43 dB  |  WOOD-detail drawings. Please contact Triplan.

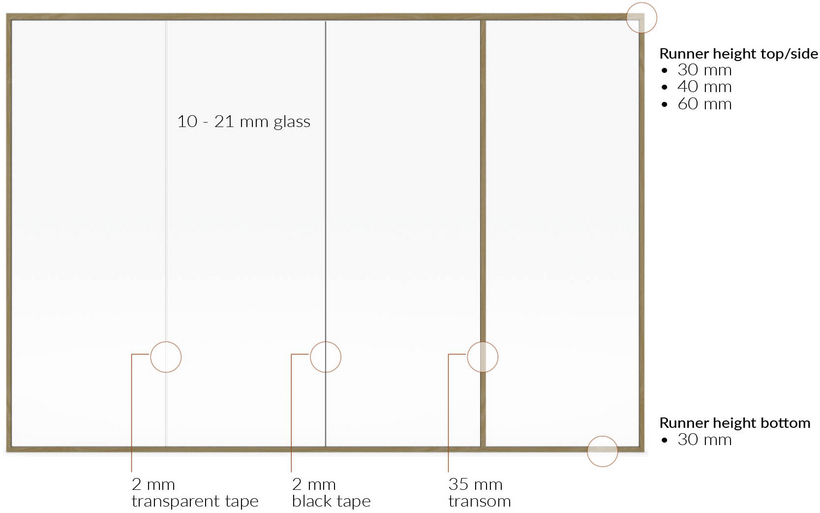

    Glazed wall. WOOD. Elevated drawing
    Glazed wall. Oak sections
    Glazed wall. Oak sections.
    Glazed wall. Oak sections.
