TRIPLAN LITE® | rw 46 - 50 dB | ALU
The TRIPLAN LITE® | rw 46 - 50 dB | ALU glazed wall system has aluminium sections with two-piece bottom runners and are delivered as standard powder-lacquered in white RAL 9010, black RAL 9005 or anodised. Sections and door frames can be delivered in different colours. A classic glazed wall solution which accommodates extra high demands for sound reduction.
A classic glass wall with slim sections
The TRIPLAN LITE® | 46 - 50 dB | ALU glazed wall ensures transparency, openness and flexibility in the layout providing an elegant and simple solution. The glass partitions are delivered with a single layer of toughened and laminated glass with thicknesses up to 42 mm, depending on sound rating wanted.

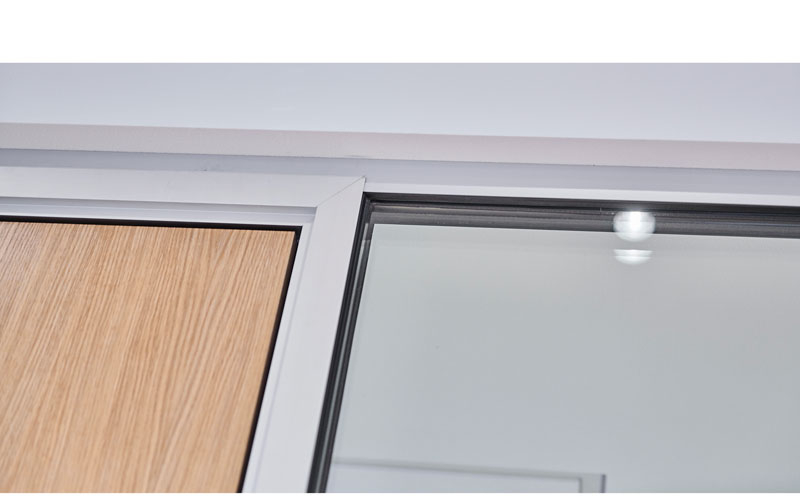

Sections and door frames
The sections are available in heights of 30 or 40 mm. Section depth depends on glass thickness. Doors are 40 or 60 mm solid doors. Or 10-12 mm toughened glass doors with slim acoustic frames. Standard size of doors is M9 x 21. They can also be delivered in full height and other module sizes. Triplan can also provide solutions with overpanels.
Get information about Triplan doors here

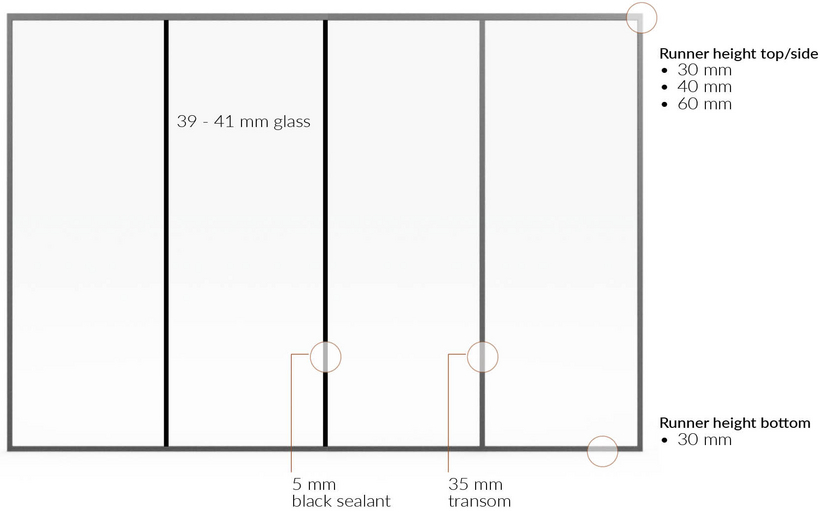

The standard for vertical joints in glass walls or glass corners is :
• The glasses are joined vertically using an acoustic tape and liquid joint material.
• Narrow transoms in the same design as the other TRIPLAN LITE®-solutions.


Wall type | Sound reduction glass | Glass jointing | Wall thickness | Fire classification | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TRIPLAN LITE® | 46 - 50 dB | ALU | 46 dB | Acoustic tape | 55 mm | - | |||||||||||||||||
TRIPLAN LITE® | 46 - 50 dB | ALU | 50 dB | Acoustic tape | 55 mm | - | |||||||||||||||||
TRIPLAN LITE® | 46 - 50 dB | ALU | 46 dB | Transom | 55 mm | - | |||||||||||||||||
TRIPLAN LITE® | 46 - 50 dB | ALU | 50 dB | Transom | 55 mm | - |
DETAIL DRAWINGS
TRIPLAN LITE® | 46 - 50 dB | ALU-detail drawings. Please contact Triplan.
