Glazed walls with sound reduction Rw 46 - 50 dB
Design category wood.

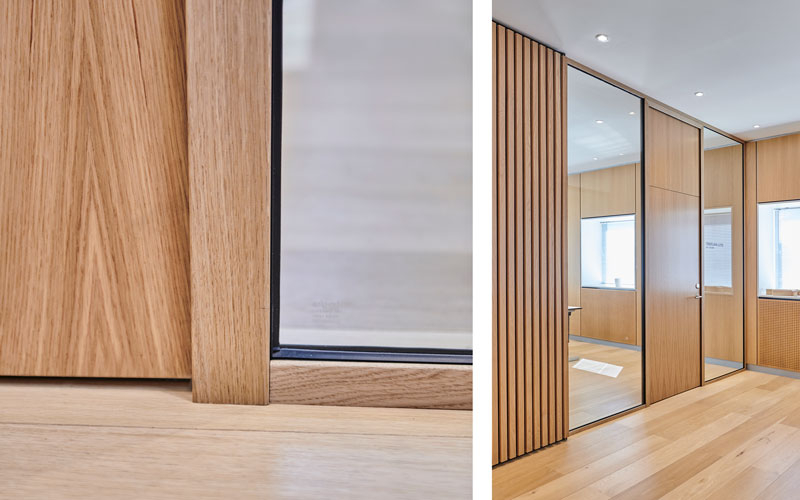

  • Triplan lite wood glasvæg 01

    TRIPLAN LITE® | 46 - 50 dB. Designkategori WOOD. Profil og dørkarm med overflade i massivt, bæredygtigt FSC-certificeret egetræ. Triplan showroom. Design category WOOD. Runner and door frame with a surface in solid, sustainable FSC-certified oak. Triplan showroom.

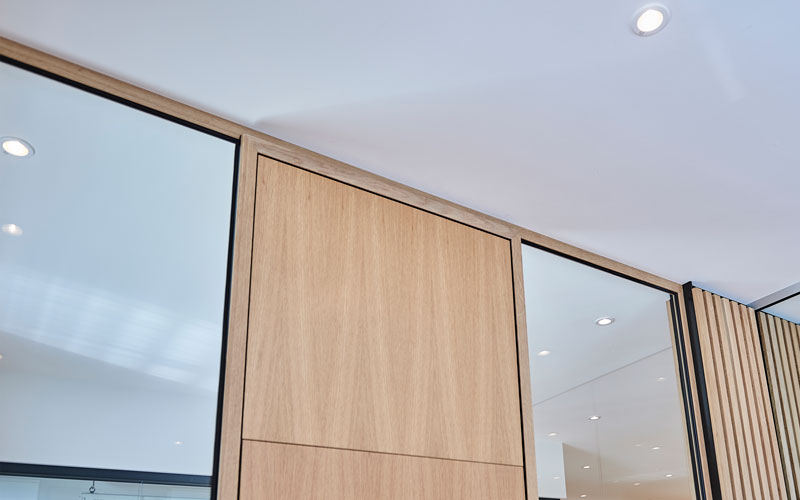

  • Triplan lite wood glasvæg 04

    TRIPLAN LITE® | 46 - 50 dB. Designkategori WOOD. Profiler og dørkarm med overflade i massivt, bæredygtigt FSC-certificeret egetræ. TD 01 trædør med overblok. Triplan showroom. Design category WOOD. Runner and door frame with a surface in solid, sustainable FSC-certified oak. TD 01 wooden door with an overpanel. Triplan showroom.

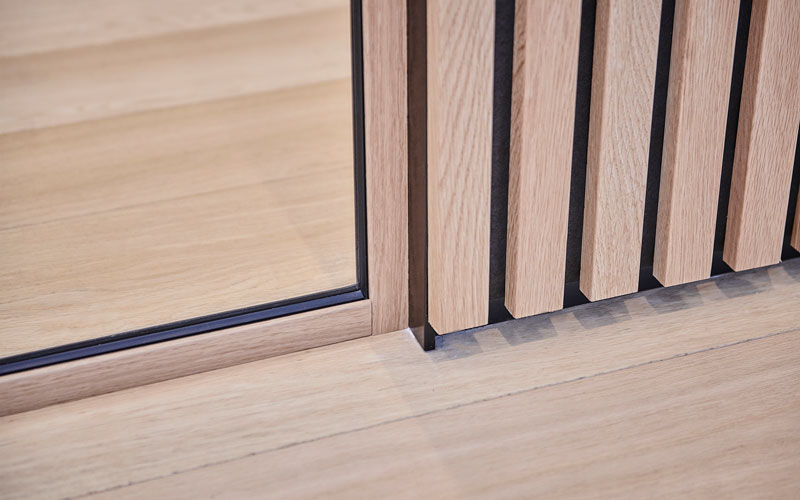

  • Triplan lite wood glasvæg 03

    TRIPLAN LITE® | 46 - 50 dB. Designkategori WOOD. Profiler med overflade i massivt, bæredygtigt FSC-certificeret egetræ. Triplan showroom. Design category WOOD. Sections with a surface in solid, sustainable FSC-certified oak. Triplan showroom.

TRIPLAN LITE®  |  46 - 50 dB |  WOOD

TRIPLAN LITE® | WOOD glazed wall system has runners, transoms and a door frame with a surface in solid, sustainable FSC-certified oak and is also available in other types of wood. An elegant solution with an exclusive touch that is easy to install and easy to move and reuse.



A classic glazed wall with a warm and beautiful finish

A TRIPLAN LITE®  | 46 - 50 dB  |  WOOD glazed wall ensures transparency, openness and flexibility in the layout providing an elegant and simple solution with high sound reduction abilities. The glass partitions are delivered with a single layer of toughened and laminated glass with thicknesses up to 42 mm, depending on the sound rating wanted. The wall is supplied with a narrow vertical joint designed as a two-piece H profile in the same width as other TRIPLAN LITE® solutions. TRIPLAN LITE® 46 - 50 dB is also available with taped or sealed joints instead of metal joints. The joints in glass walls or glass corners must be performed with TRIPLAN LITE® sealant for thermo acoustic glass, tested and approved by Triplan.







Sections and door frames

The sections are available in heights of 30 or 40 mm. Section depth depends on glass thickness. Doors are 40 or 60 mm solid doors. Or 10-12 mm toughened glass doors with wooden acoustic frames. Standard size of doors is M9 x 21. They can also be delivered in full height and other module sizes. Triplan can also provide solutions with overpanels.



Get information about Triplan doors here

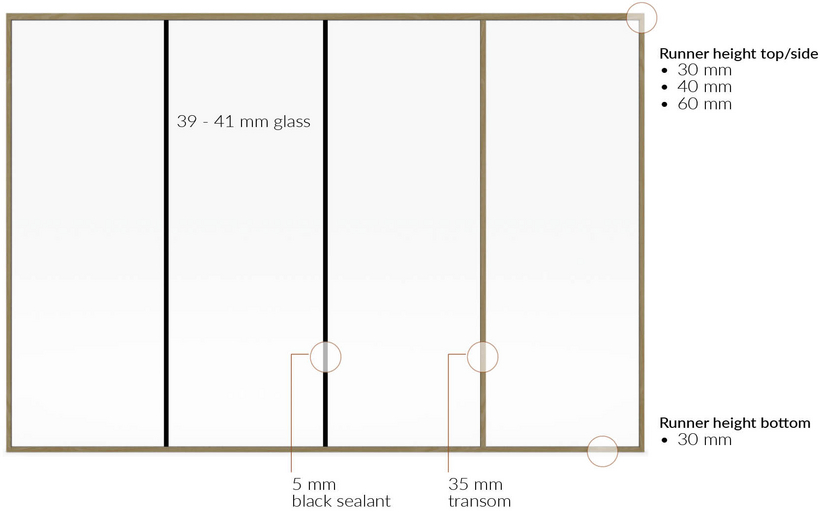

The standard for vertical joints in glass walls or glass corners is :

•   The glasses are joined vertically using an acoustic tape and liquid joint material.

•   Narrow transoms in the same design as the other TRIPLAN LITE®-solutions.

Glass junction with black sealant. TRIPLAN LITE | WOOD
Glass junction with wooden transom.
Wall type        Sound reduction glass          Glass jointing          Wall thickness        Fire classification
TRIPLAN LITE®  |  46 - 50 dB  |  WOOD46 dBBlack sealant65 mm-
TRIPLAN LITE®  |  46 - 50 dB  |  WOOD50 dBBlack sealant65 mm-
TRIPLAN LITE®  |  46 - 50 dB  |  WOOD46 dBBlack sealant65 mm-
TRIPLAN LITE®  |  46 - 50 dB  |  WOOD50 dBBlack sealant65 mm-

DETAIL DRAWINGS

TRIPLAN LITE®  |  46 - 50 dB  |  WOOD-detail drawings. Please contact Triplan.





Glazed wall. Oak sections
Glazed wall. Oak sections.
Glazed wall. Oak sections.
