TRIPLAN LITE glazed wall. Fire classification E - EI
Design category aluminium. Glazed walls TRIPLAN LITE

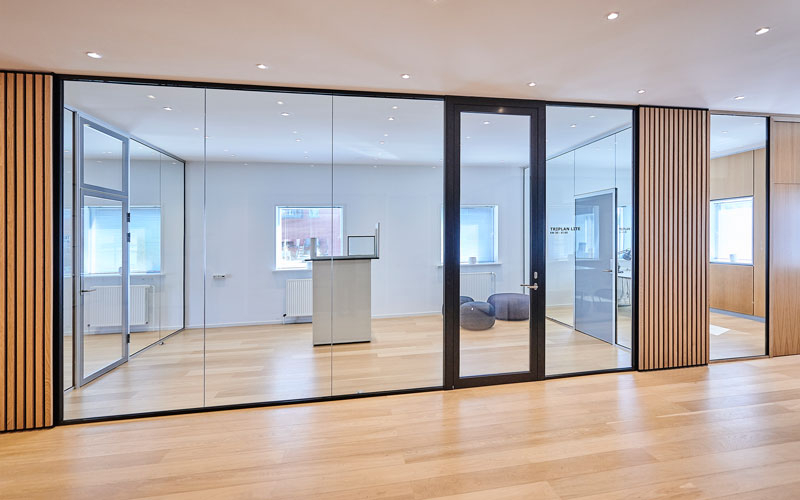

  • Triplan lite brand glasvæg 06

    TRIPLAN LITE® | E – EI. Designkategori ALU med sorte profiler. Brandglasvæg med klar fugesamling. SGD 01 stålrammedør med glas i fuld højde. Triplan showroom. Design category ALU with powder coated black sections in aluminium. Glass jointing with clear sealant. SGD 01 glass door. Triplan showroom.

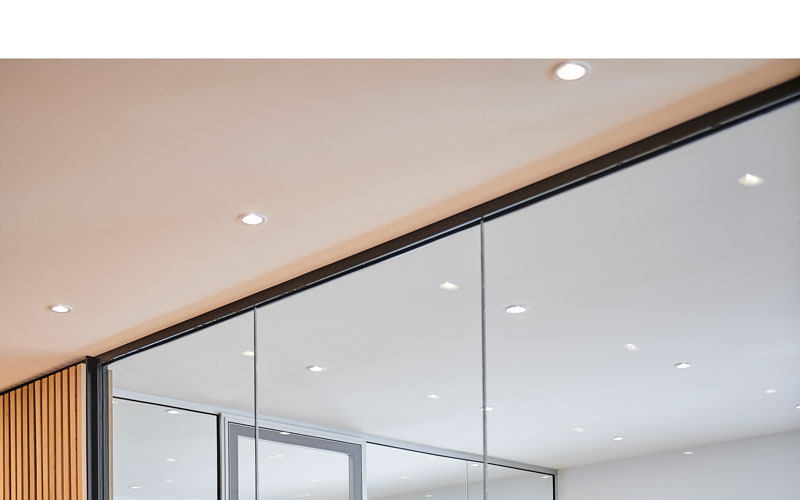

  • Triplan lite brand glasvæg 07

    TRIPLAN LITE® | E – EI. Designkategori ALU med sorte profiler. Brandglasvæg med klar fugesamling. Triplan showroom. Design category ALU with powder coated black sections in aluminium. Glass jointing with clear sealant. Triplan showroom.

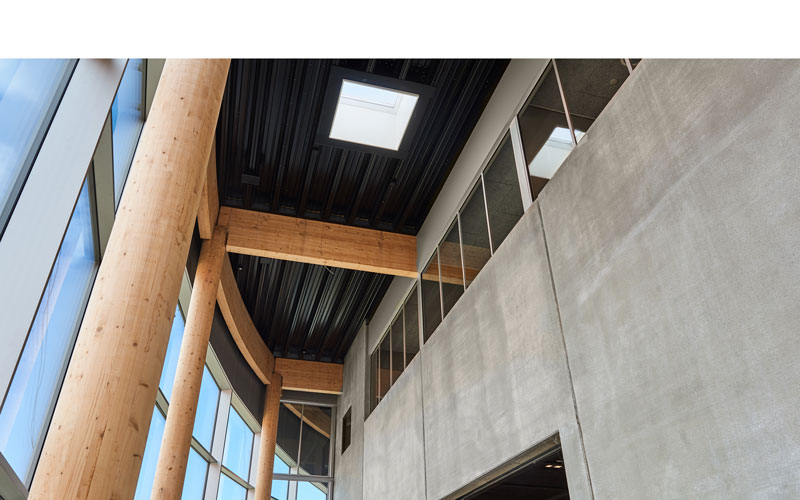

  • Triplan lite brand glasvæg 02

    TRIPLAN LITE® | E – EI. Designkategori ALU med naturelokserede profiler. Brandglasvæg med sprossesamling. Det ny Limfjordsteater. Arkitekt: CEBRA Arkitekter og Arkitekt Boris Broman Jensen. Design category ALU with anodised sections in aluminium. Glass jointing with transoms. The Limfjord Theatre. Architect: CEBRA Arkitekter and Architect Boris Broman Jensen.

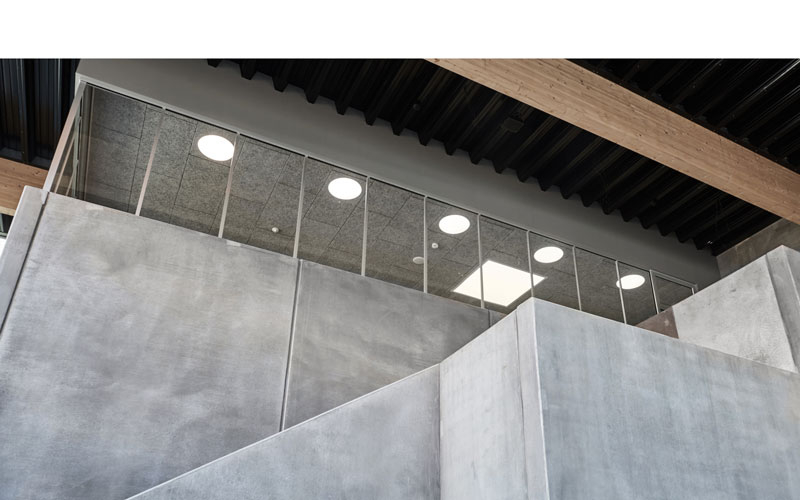

  • Triplan lite brand glasvæg 01

    TRIPLAN LITE® | E – EI. Designkategori ALU med naturelokserede profiler. Brandglasvæg med sprossesamling. Det ny Limfjordsteater. Arkitekt: CEBRA Arkitekter og Arkitekt Boris Broman Jensen. Design category ALU with anodised sections in aluminium. Glass jointing with transoms. The Limfjord Theatre. Architect: CEBRA Arkitekter and Architect Boris Broman Jensen.

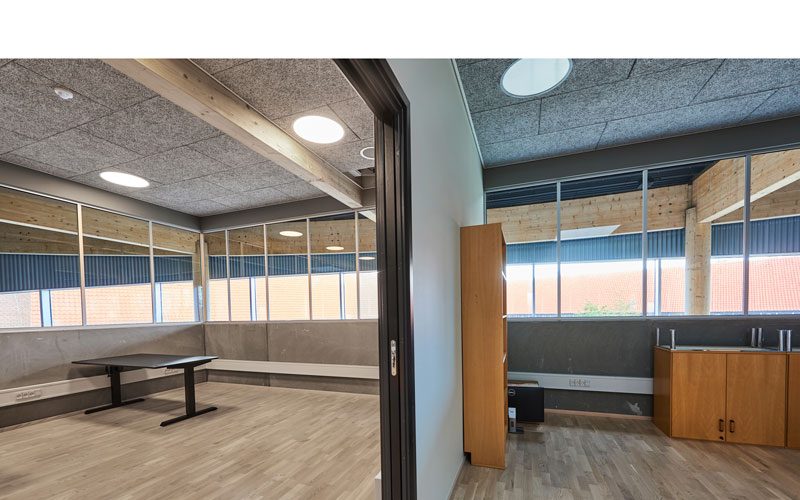

  • Triplan lite brand glasvæg 03

    TRIPLAN LITE® | E – EI. Designkategori ALU med naturelokserede profiler. Brandglasvæg med sprossesamling. Det ny Limfjordsteater. Arkitekt: CEBRA Arkitekter og Arkitekt Boris Broman Jensen. Design category ALU with anodised sections in aluminium. Glass jointing with transoms. The Limfjord Theatre. Architect: CEBRA Arkitekter and Architect Boris Broman Jensen.

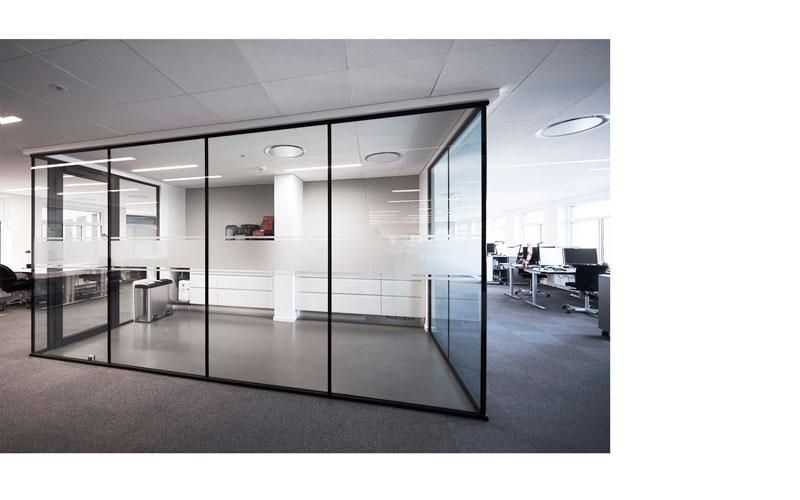

  • Triplan lite brand glasvæg 04

    TRIPLAN LITE® | E – EI. Designkategori ALU med sorte profiler. Brandglasvæg med sort fuge- og hjørnesamling. SGD 01 stålrammedør med glas i fuld højde. Kontorindretning Movia, Valby. Arkitekt: Krydsrum Arkitekter. Design category ALU with powder coated black sections in aluminium. Glass and corner jointing with black sealant. Movia office, Copenhagen. Architect: Krydsrum Architects.

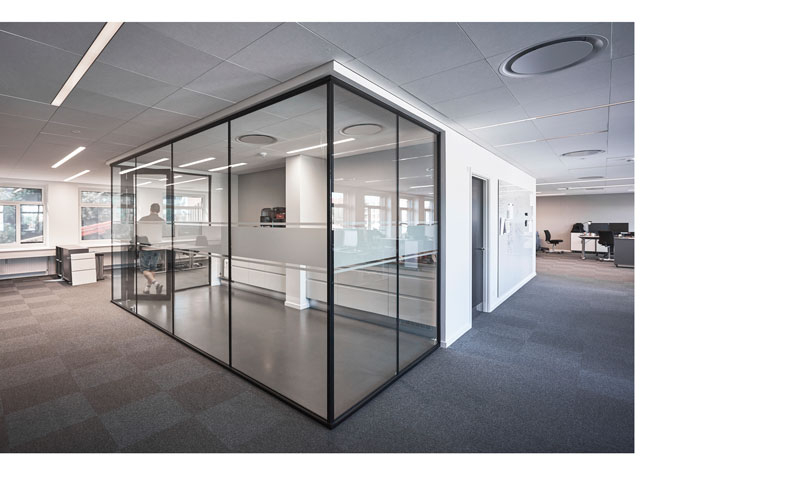

  • Triplan lite brand glasvæg 07

    TRIPLAN LITE® | E – EI. Designkategori ALU med sorte profiler. Brandglasvæg med sort fuge- og hjørnesamling. SGD 01 stålrammedør med glas i fuld højde. Kontorindretning Movia, Valby. Arkitekt: Krydsrum Arkitekter. Design category ALU with powder coated black sections in aluminium. Glass and corner jointing with black sealant. Movia office, Copenhagen. Architect: Krydsrum Architects.

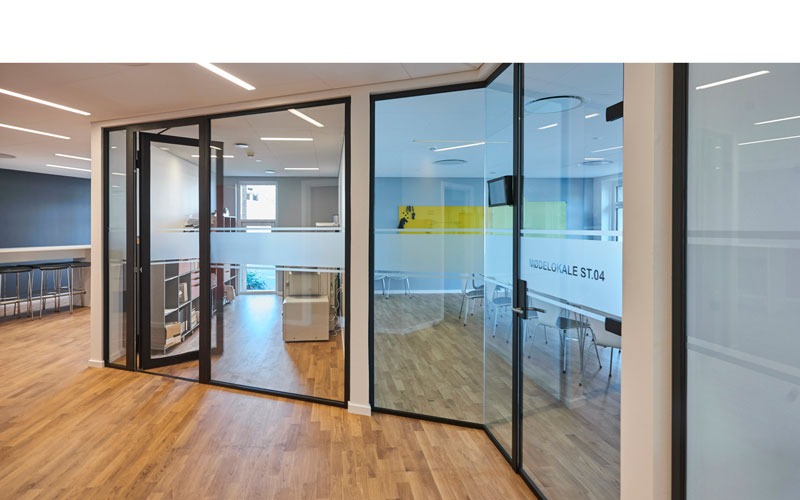

  • Triplan lite brand glasvæg 08

    TRIPLAN LITE® | E – EI. Designkategori ALU med sorte profiler. Brandglasvæg ved siden af TRIPLAN LITE® | 34 - 43 dB glasvæg. SGD 01 stålrammedør med glas i fuld højde. Kontorindretning Movia, Valby. Arkitekt: Krydsrum Arkitekter. Design category ALU with powder coated black sections in aluminium. Fire rated glazed wall next to a TRIPLAN LITE® | 34 - 43 dB glazed wall. SGD 01 glass door. Movia office, Copenhagen. Architect: Krydsrum Architects.

TRIPLAN LITE®  |  E - EI | ALU

The TRIPLAN LITE® | E - EI | ALU glazed wall system has aluminium sections with two-piece bottom runners and are delivered as standard powder-lacquered in white RAL 9010, black RAL 9005 or anodised. Sections and door frames can be delivered in different colours. A classic glazed wall solution which accommodates extra high demands for fire safety.

Fire tested, patented glazed wall solution in a stylish design

The TRIPLAN LITE® | E - EI | ALU glazed wall ensures transparency, openness and flexibility in the layout providing an elegant and simple solution. Here the TRIPLAN LITE® glass wall system combines the simple and minimalistic design with high fire safety. The glass partitions are delivered with a single layer of glass, typically fire rated glass with thicknesses from 13 - 31 mm, depending on the fire rating wanted and the wall height.



Sections and door frames

The sections are available in heights of 30, 40 or 60 mm. Section depth depends on glass thickness. The transom width is 35 mm. Doors are supplied as steel frame glass doors. Or 40 or 60 mm solid doors. Standard size of doors is M10 x 21. They can also be delivered in full height and other module sizes.



Get information about Triplan doors here





The standard for vertical joints in glass walls or glass corners is:

•   Both corners and vertical junctions are sealed with 4 mm fire rated clear joint.

•   Black glass edges and both corners and vertical junctions sealed with 4 mm fire rated black joint.

•   Narrow transoms in the same design as the other TRIPLAN LITE®-solutions.

TRIPLAN LITE glazed wall. Transparent glass junction.
TRIPLAN LITE glazed wall. Junction with black sealant
TRIPLAN LITE glazed wall witha  transom
Wall type          Fire Classification          Glass jointing          Wall thickness          Sound reduction glass
TRIPLAN LITE®  |  E - EI  |  ALUEI 30Clear fire-rated sealant42/49 mm39 dB
TRIPLAN LITE®  |  E - EI  |  ALUEI 60Clear fire-rated sealant49/56 mm40 - 43 dB
TRIPLAN LITE®  |  E - EI  |  ALUE 30/EW 30Black fire-rated sealant49 mm39 dB
TRIPLAN LITE®  |  E - EI  |  ALUE 60/EW 60Black fire-rated sealant49 mm39 - 42 dB
TRIPLAN LITE®  |  E - EI  |  ALUEI 30Black fire-rated sealant49/56 mm42 - 43 dB
TRIPLAN LITE®  |  E - EI  |  ALUEI 60Black fire-rated sealant46 mm43 dB
TRIPLAN LITE®  |  E - EI  |  ALUE 30/EW 30Transom42/49 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  ALUE 60 / EW 60Transom42 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  ALUE 90 / EW 90Transom42 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  ALUEI 30Transom42/49 mm41 - 42 dB
TRIPLAN LITE®  |  E - EI  |  ALUEI 60Transom56 mm40 - 43 dB

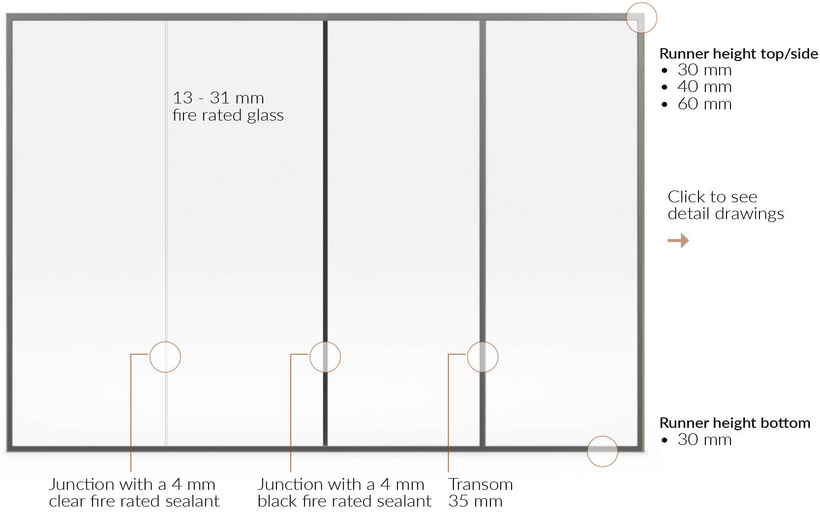

TRIPLAN LITE | E - EI. Glazed wall
TRIPLAN LITE glazed wall. Corner detail.
TRIPLAN LITE glazed wall. Section detail.
TRIPLAN LITE glazed wall. Top solution
