TRIPLAN LITE glazed wall. Fire classification E - EI
Design category NEW YORK. TRIPLAN LITE glazed walls
  • Triplan lite new york glasvæg 08

    TRIPLAN LITE® | E - EI. Designkategori NEW YORK med brandklassificeret SGD 01 dobbeltdør og sorte pulverlakerede profiler og karme. Theodora Hus. Arkitekt: Adept/JJW Arkitekter. Design category NEW YORK fire rated glazed wall with powder coated black sections, transoms and door frame. SGD 01 fire rated double glass door.

  • Triplan lite new york glasvæg 07

    TRIPLAN LITE® | E - EI. Designkategori NEW YORK med brandklassificeret SGD 01 dobbeltdør og sorte pulverlakerede profiler og karme. Theodora Hus. Arkitekt: Adept/JJW Arkitekter. Design category NEW YORK fire rated glazed wall with powder coated black sections, transoms and door frame. SGD 01 fire rated double glass door.

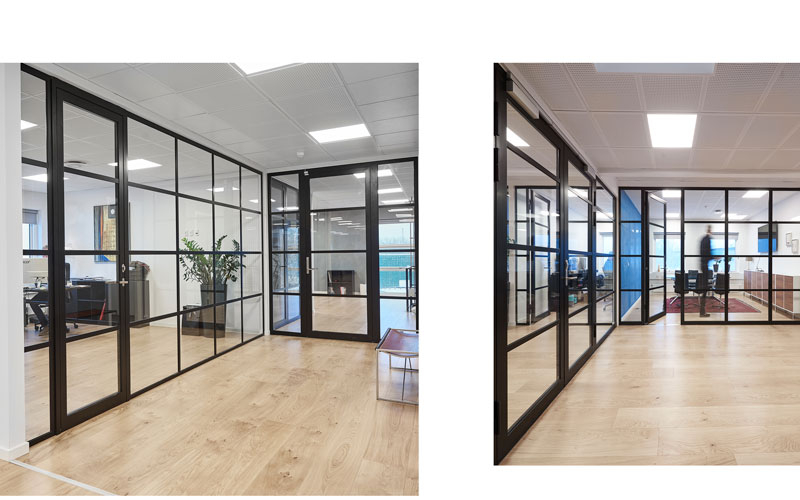

  • Triplan lite brand glasvæg 11

    TRIPLAN LITE® | E - EI. Designkategori NEW YORK med brandklassificeret dørtype SGD 01 og sorte pulverlakerede profiler og karme. Bording A/S kontorer. Design category NEW YORK with fire rated door type SGD 01 and black powder coated sections and door frame. Bording A/S office.

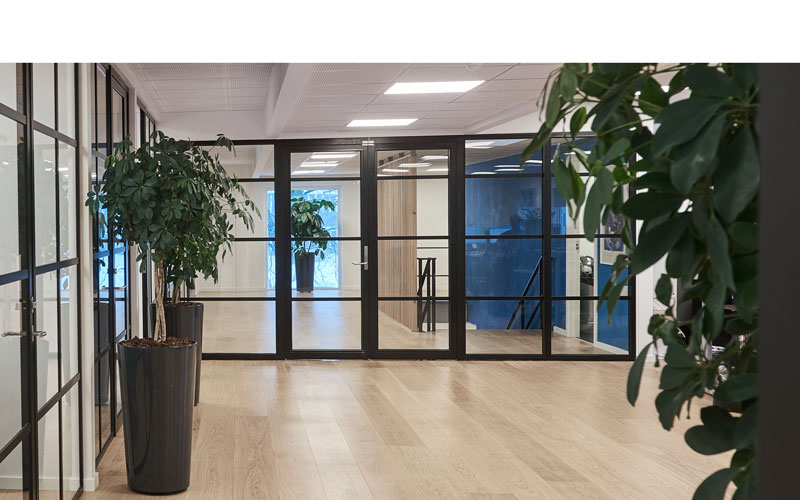

  • Triplan lite brand glasvæg 07

    TRIPLAN LITE® | E - EI. Designkategori NEW YORK med brandklassificeret dørtype SGD 01 og sorte pulverlakerede profiler og karme. Bording A/S kontorer. Design category NEW YORK with fire rated door type SGD 01 and black powder coated sections and door frame. Bording A/S office.

TRIPLAN LITE® | E - EI | NEW YORK

TRIPLAN LITE® | E-EI | NEW YORK

TRIPLAN LITE® | E-EI | NEW YORK is a further development of the classic TRIPLAN LITE®, a glazed wall system in a simple ALU-design with many abilities. The  fire-rated wall solution is equipped with vertical transoms in aluminium. Horizontal transoms are taped onto the glass thus transforming it into the popular New York look*. A fire-rated solution with a stylish design.





Fire tested, patented glazed wall solution - E - EI*

If the requirements for fire safety are high, TRIPLAN LITE® with the properties E - EI is the right solution. Here the TRIPLAN LITE® glass wall system combines the simple and minimalistic design with high fire safety. The glazed wall partitions are delivered with a single layer of glass, typically fire rated glass with thicknesses from 13 - 31 mm, depending on the fire rating wanted and the wall height.



* Requires approval from local fire department

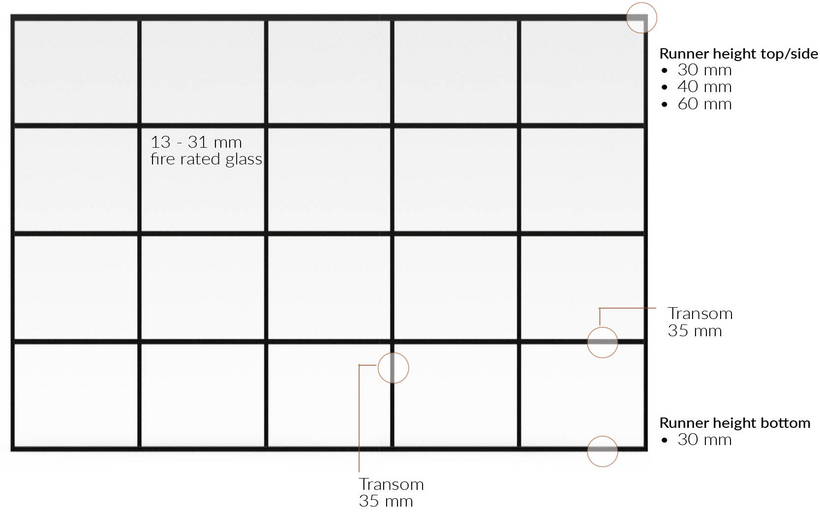

Sections and door frames

The sections are available in heights of 30, 40 or 60 mm. Section depth depends on glass thickness. The system has aluminium sections with two-piece bottom runners and are delivered as standard powder-lacquered black RAL 9005. The transom width is 35 mm. Doors are supplied as steel frame glass doors. Standard size of doors is M10 x 21. They can also be delivered in full height and other module sizes.



Get information about Triplan doors here







The standard for vertical joints in glass walls or glass corners is :

•   Narrow horizontal and vertical transoms transoms in the same design as the other TRIPLAN LITE®-solutions.

New York glazed wall.
New York style glazed wall
New York glazed wall. TRIPLAN LITE glass wall
Wall type          Fire classification          Glass jointing          Wall thickness          Sound reduction glass
TRIPLAN LITE®  |  E - EI  |  NEW YORKE 30/EW 30Transom42/49 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  NEW YORKE 60 / EW 60Transom42 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  NEW YORKE 90 / EW 90Transom42 mm38 - 40 dB
TRIPLAN LITE®  |  E - EI  |  NEW YORKEI 30Transom42/49 mm41 - 42 dB
TRIPLAN LITE®  |  E - EI  |  NEW YORKEI 60Transom56 mm40 - 43 dB

DETAIL DRAWINGS

TRIPLAN LITE®  |  E - EI  |  NEW YORK-detail drawings. Please contact Triplan.

Glazed wall. TRIPLAN LITE | E - EI New York glass wall
New York glazed wall. Corner detail
New York glazed wall.
New York glazed wall
