Flexica system walls - Wall types
100 mm single wall consisting of a 72 mm steel skeleton construction with one plasterboard on each side. Insulated with 50 or 75 mm mineral wool. Find all information about Flexica on our download page
125 mm single wall consisting of a 72 mm steel skeleton construction with two plasterboards on each side. Insulated with 50 mm mineral wool. Find all information about Flexica on our download page
100 mm single wall consisting of a 49 mm steel skeleton construction with two plasterboards on each side. Insulated with 50 mm mineral wool. Find all information about Flexica on our download page
165 mm double wall consisting of two 49 mm steel skeleton constructions with two plasterboards on each side. Insulated with 2x50 mm mineral wool. Find all information about Flexica on our download page
100 mm wall consisting of a 72 mm steel skeleton construction with a glass plate on one side. Find all information about Flexica on our download page
100 mm wall consisting of a 72 mm steel skeleton construction with a glass plate on each side. Find all information about Flexica on our download page
125 mm wall consisting of a 72 mm steel skeleton construction with a glass plate on one side. Find all information about Flexica on our download page

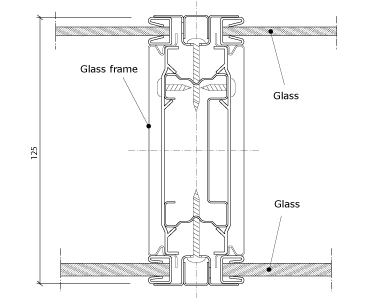

125 mm wall consisting of a 72 mm steel skeleton construction with a glass plate on each side. Find all information about Flexica on our download page
|
|
|
|
|
|
| |
|---|---|---|---|---|---|---|---|
| Flexica 1-11 (TF1-11) | 100 | 50/75 | 30/32 | 44 | BS30/60 | 72 | |
| Flexica 1-12 (TF1-12) | 125 | 50 | 48 | 49 | BS60 | 72 | |
| Flexica 2-12 (TF2-12) | 100 | 50 | 48 | 49 | EI90 | 49 | |
| Flexica 2-22 (TF2-22) | 165 | 2x50 | 54 | 54 | BS120 | 2x49 | |
| Flexica 1 glass (TF-1 glass) | 100 | - | 18 | 28-34 | - | 72 | |
| Flexica 2 glass (TF-2 glass) | 100 | - | 29 | 31-40 | - | 72 | |
| Flexica 1 glass 125 (TF-1 glass 125) | 125 | - | 19 | 28-33 | - | 72 | |
| Flexica 2 glass 125 (TF-2 glass 125) | 125 | - | 30 | 31-39 | - | 72 |
* Laboratory measured values
